Don’t Tell Liv
BLUE PAINT
STAIRWELL ELEVATION
VIP WALL

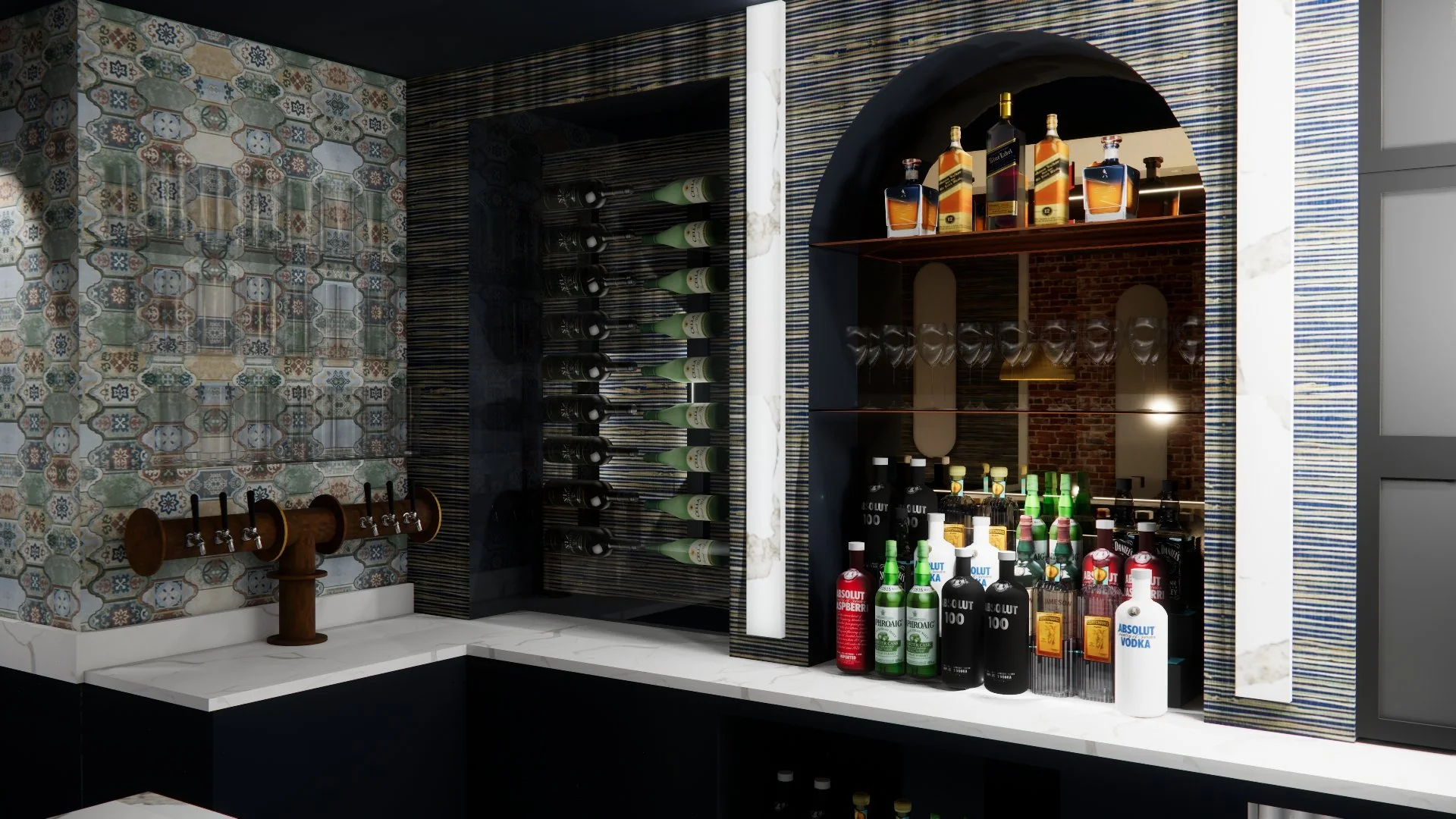

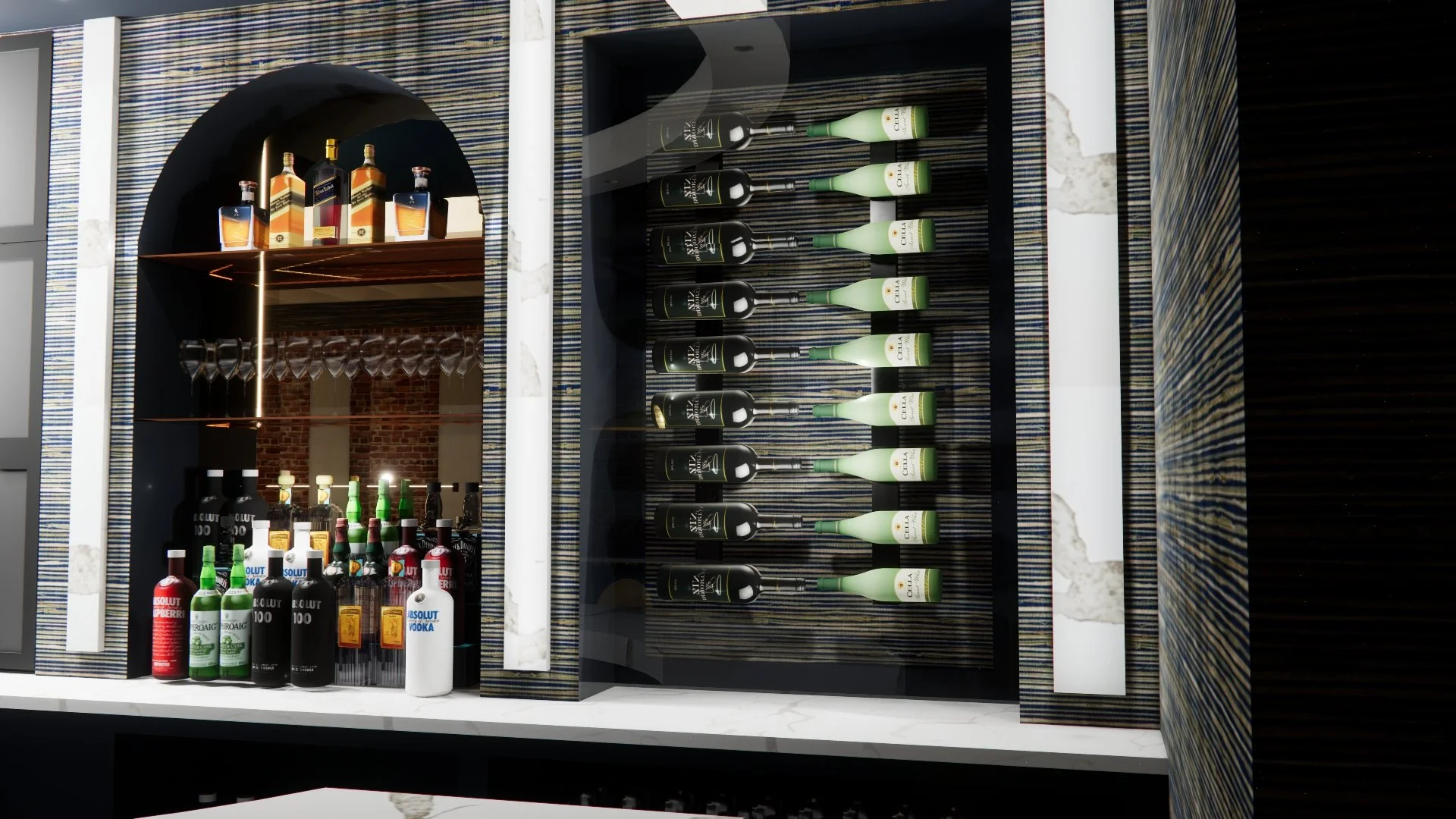

BACK BAR ELEVATION
BAR TOP ELEVATION
REVISED LIGHTING PLAN
5-14-24
***NOTE! There are (2) red oval Led Power Source indicators with and “i” marking by the DJ Booth. 1 Will be for a 1x1” strip at 40” from floor the length of the banquette on the wall on which to mount an Led strip facing up and washing the wallpaper up vertically from wall from behind the banquette. The other will be a power source for a Back-Lit Logo sign on the wall behind the DJ booth.
WALL COVERING FOR LEFT SIDE ENTRY HALL (I will pass on my 40% discount so budget $1200 until we have finished measurements from Tanner)
See Tanner for Quantity (somewhere around 12 sheets)
Order (8) sets

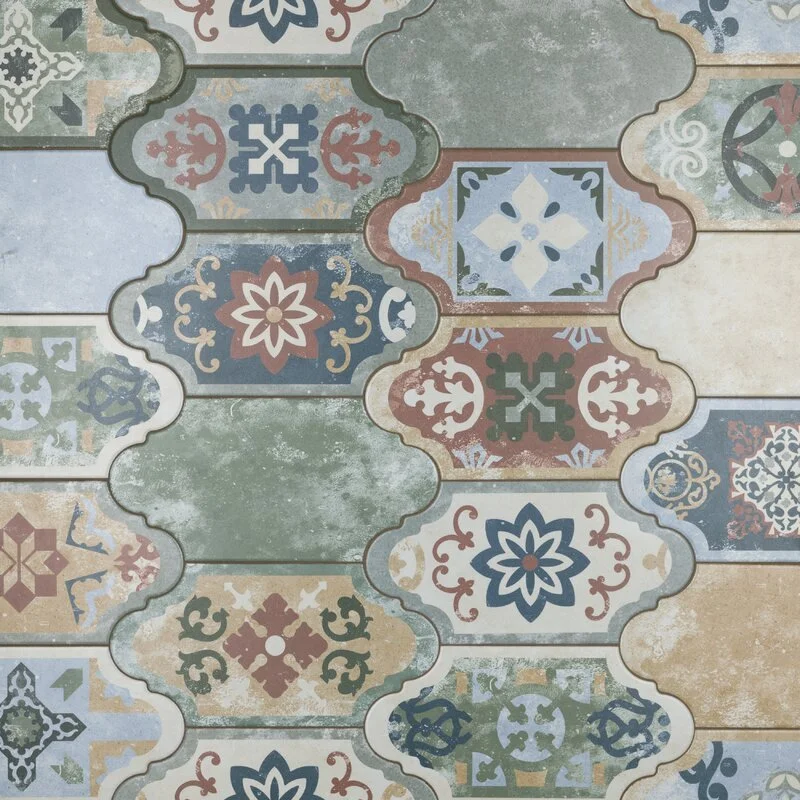

WALLPAPER: (order 5 bolts from Lexi 973-224-7731) PhillipJeffries Grass Cloth TILE LINK (need 184 order 220SF) : Artisan Floor Tile

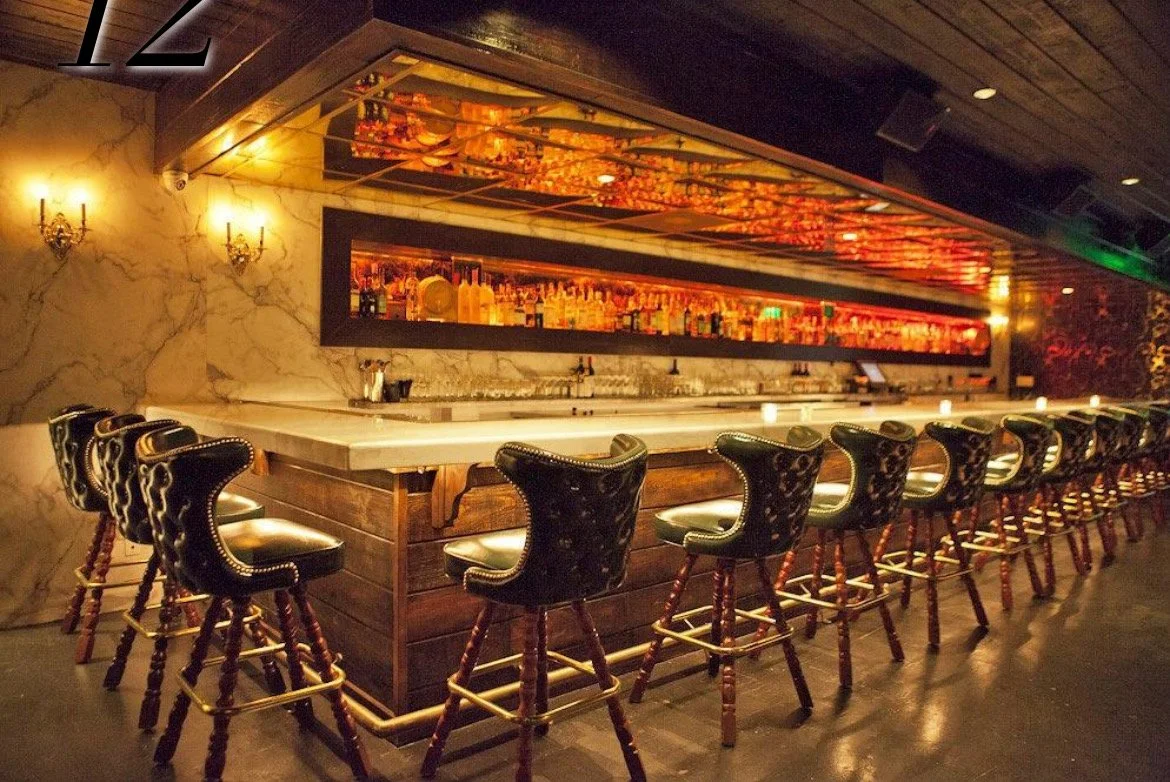

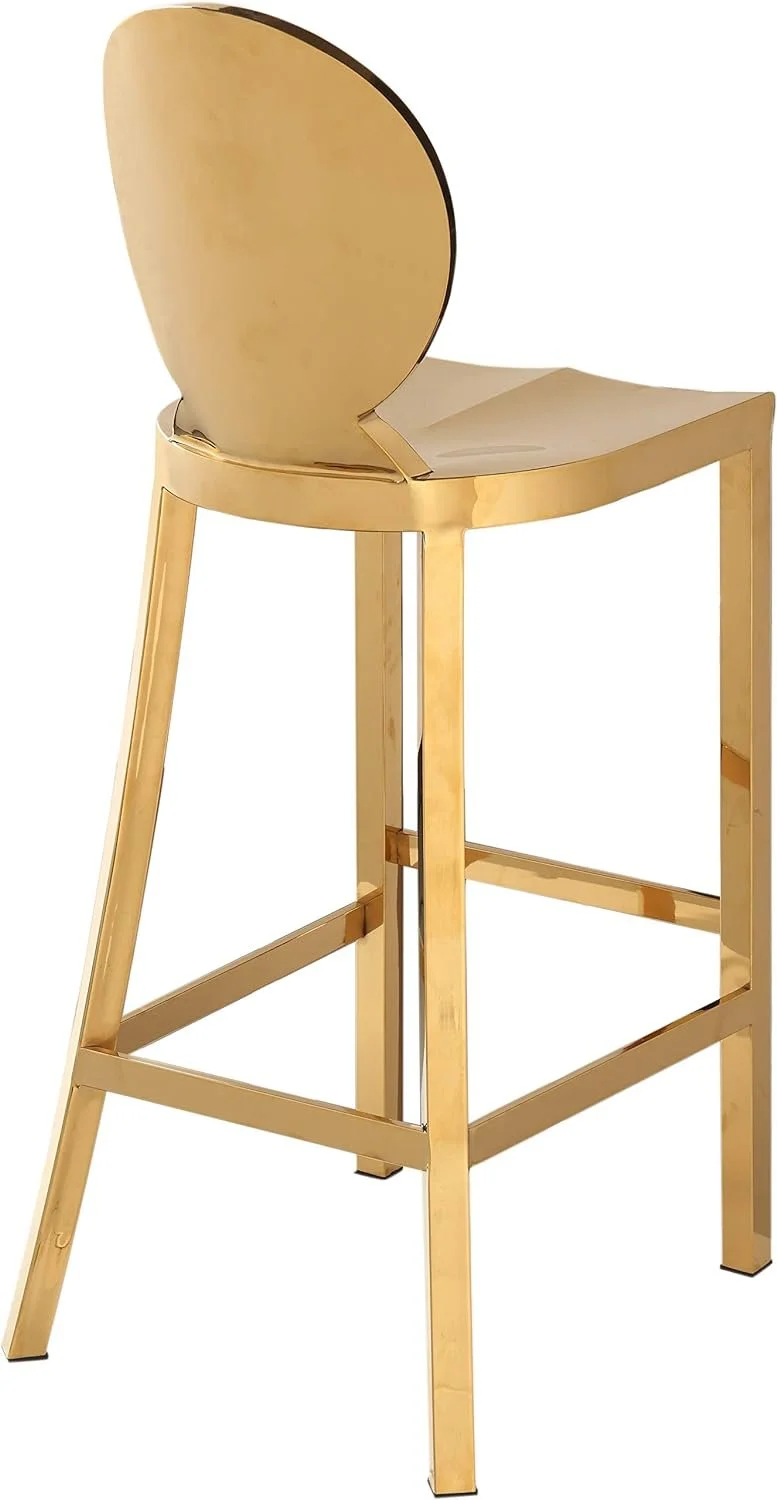

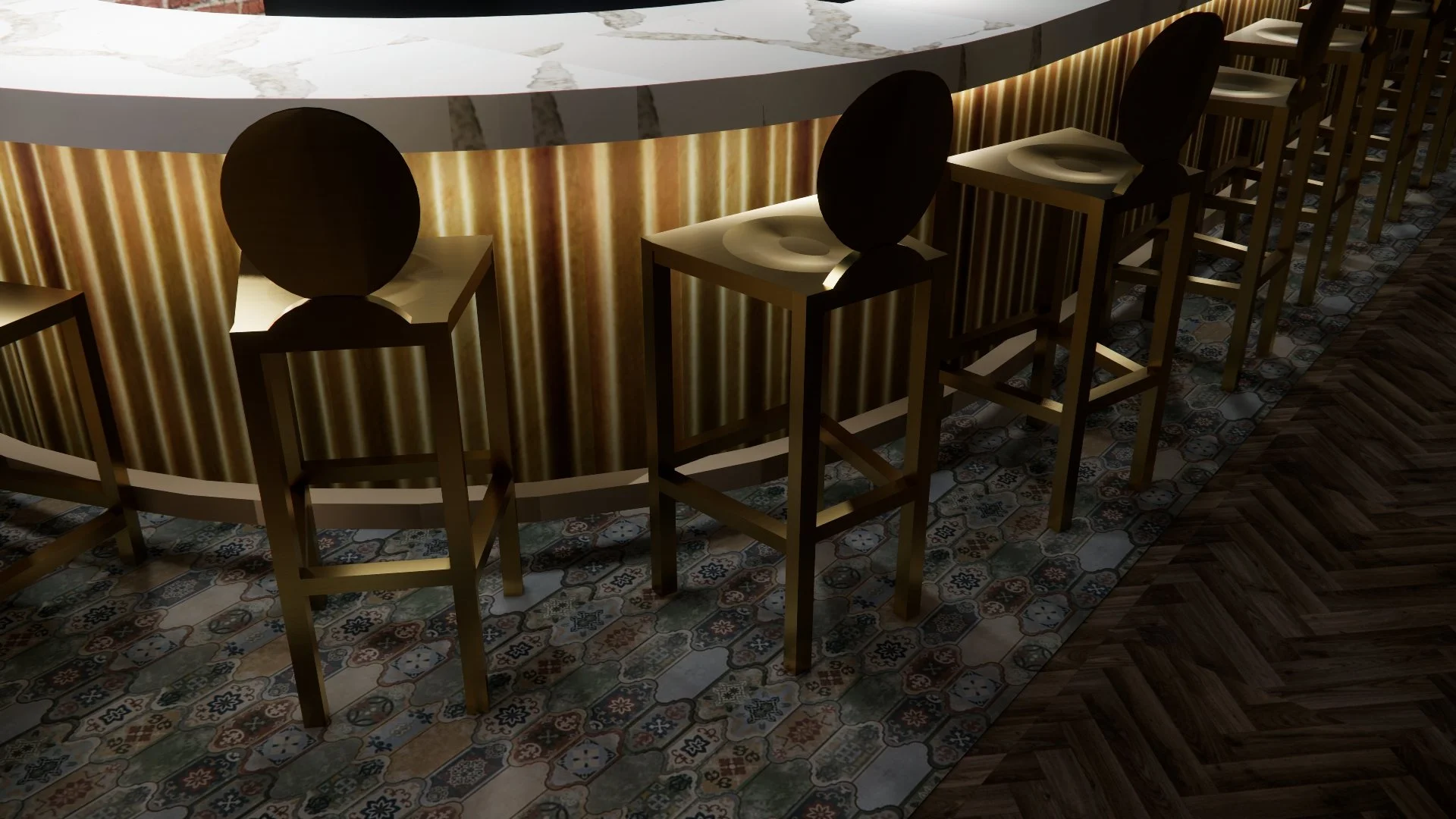

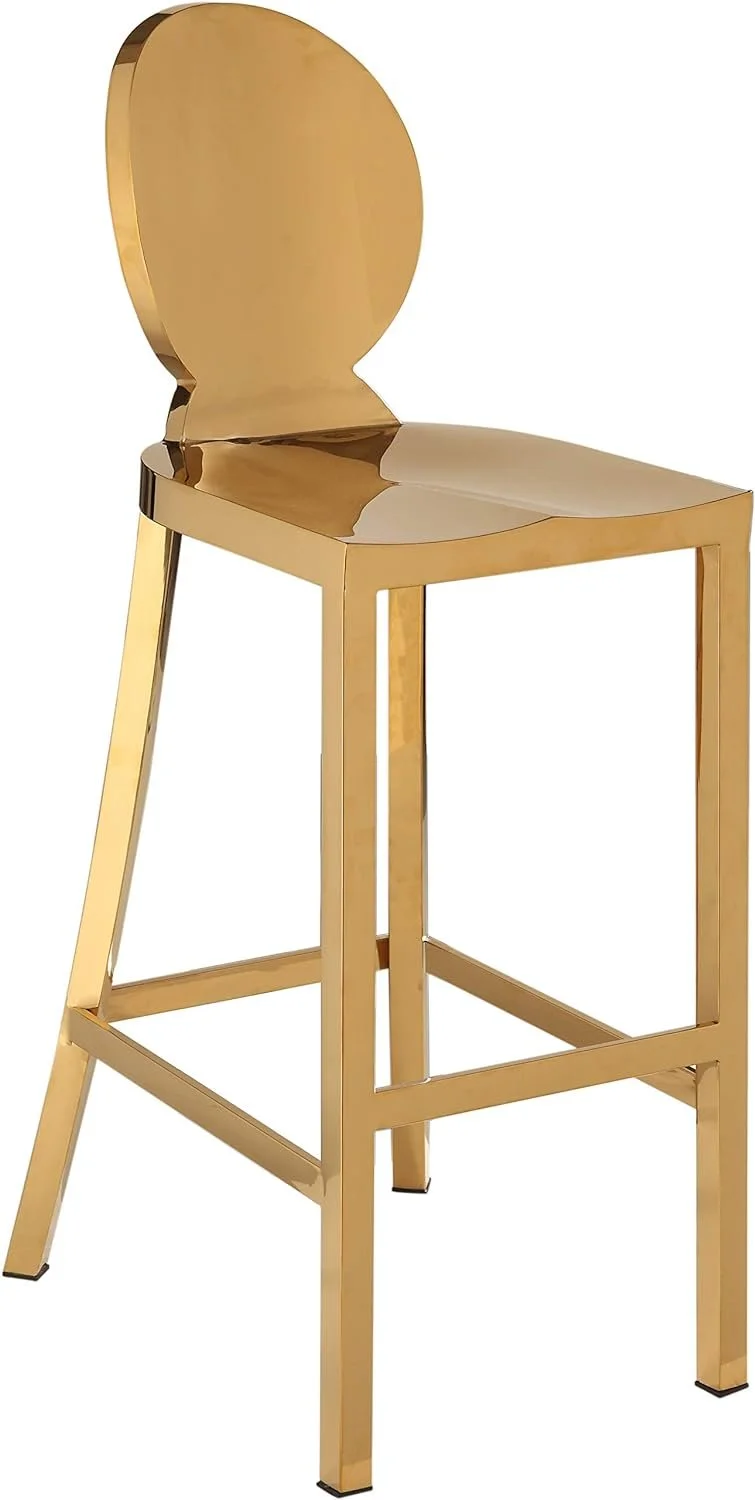

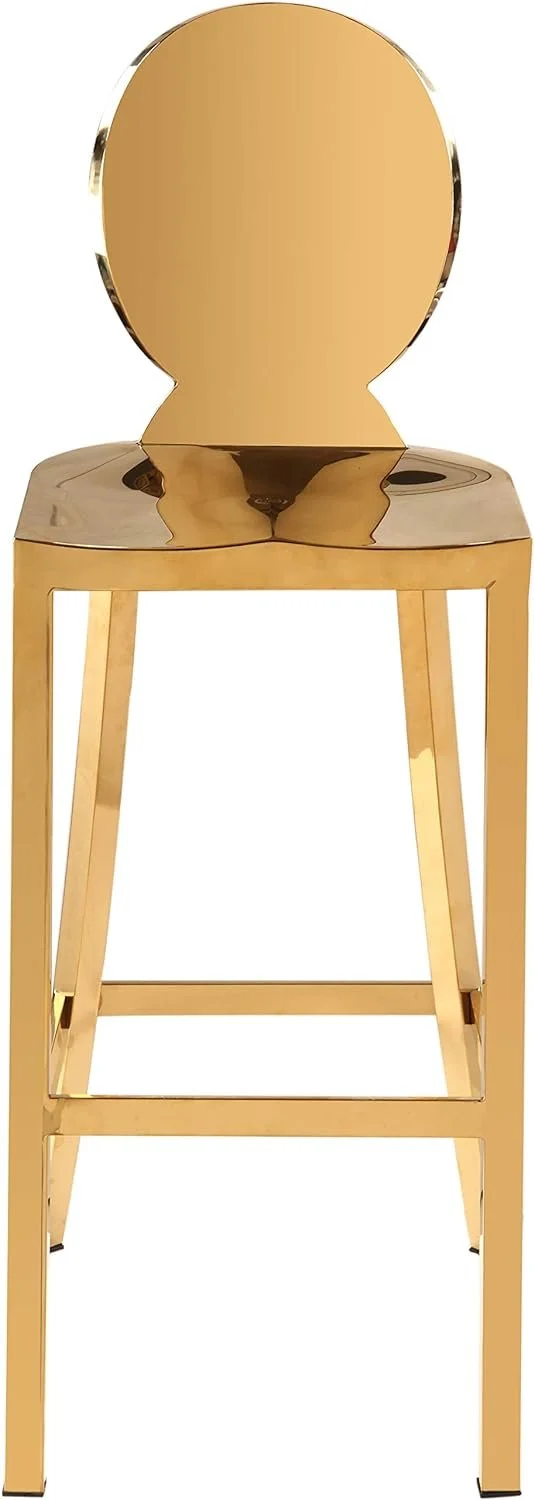

ORDER 18 BARSTOOLS
ORDER 3

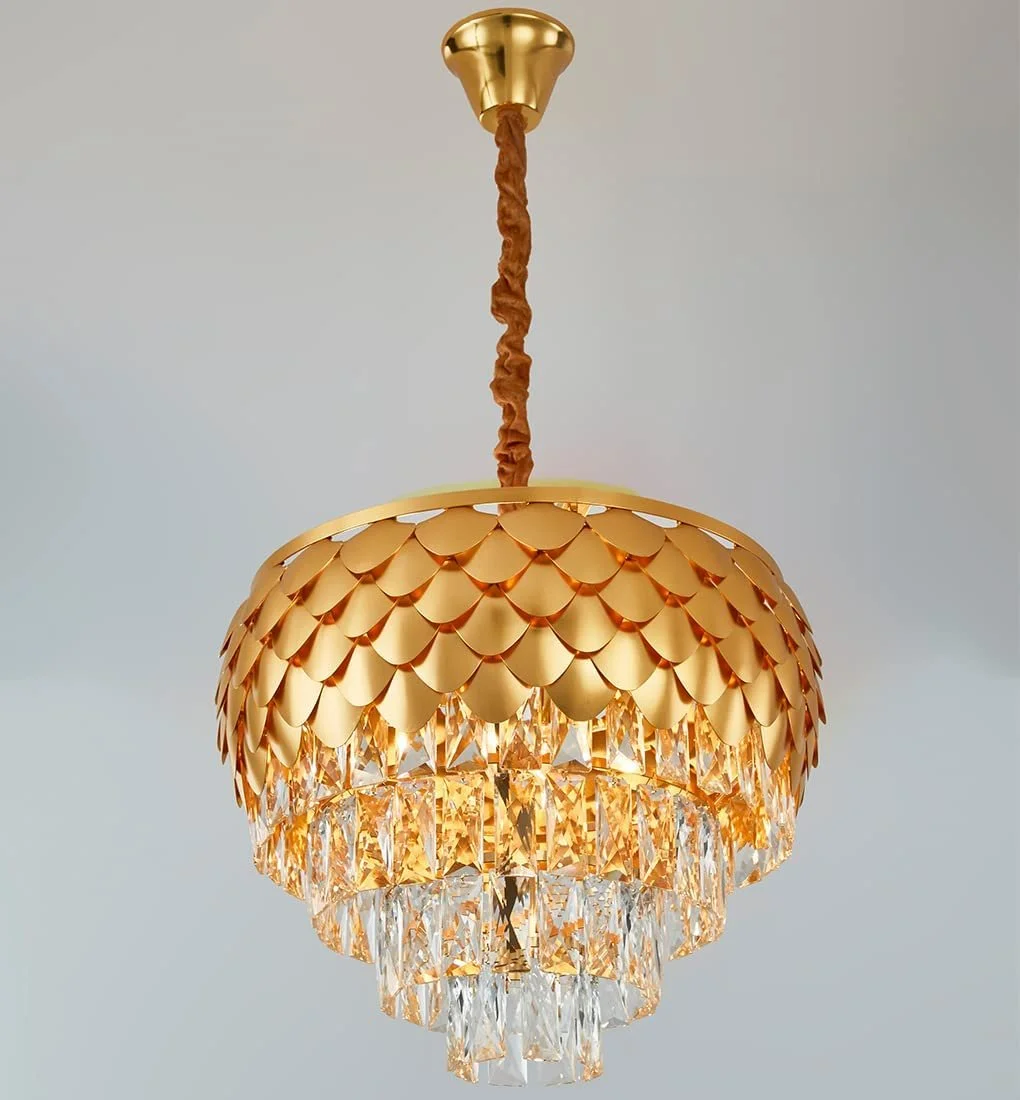

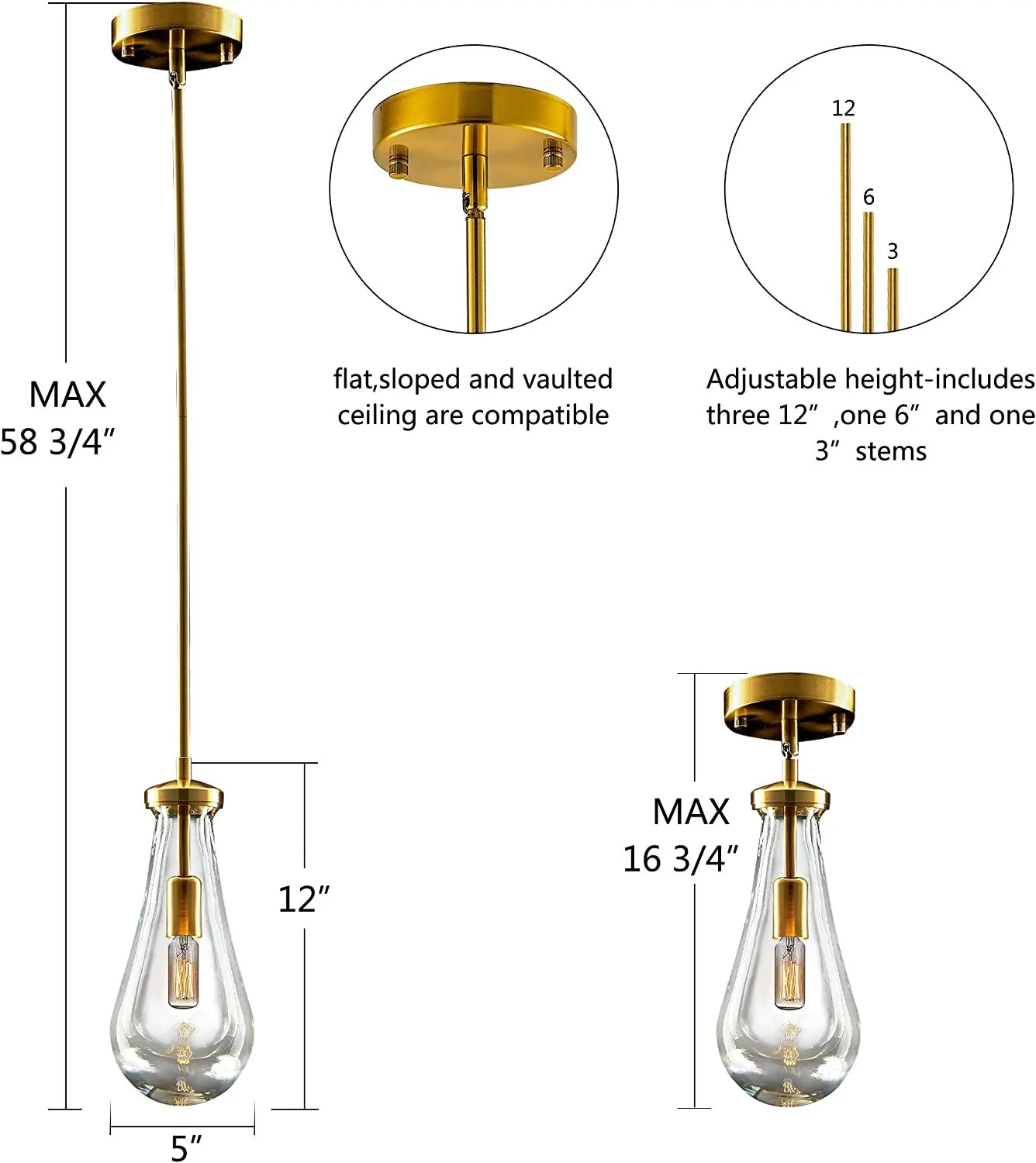

ORDER 16 SINGLE PENDANTS

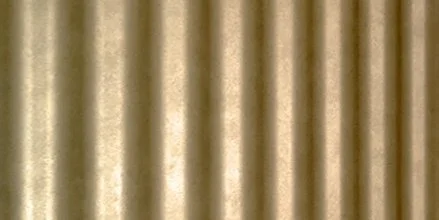

ORDER (9) 44 1/2” X 120” CORRUGATED SHEETS
BAR FOOT RAIL
ORDER 1 (48” OR 60”)

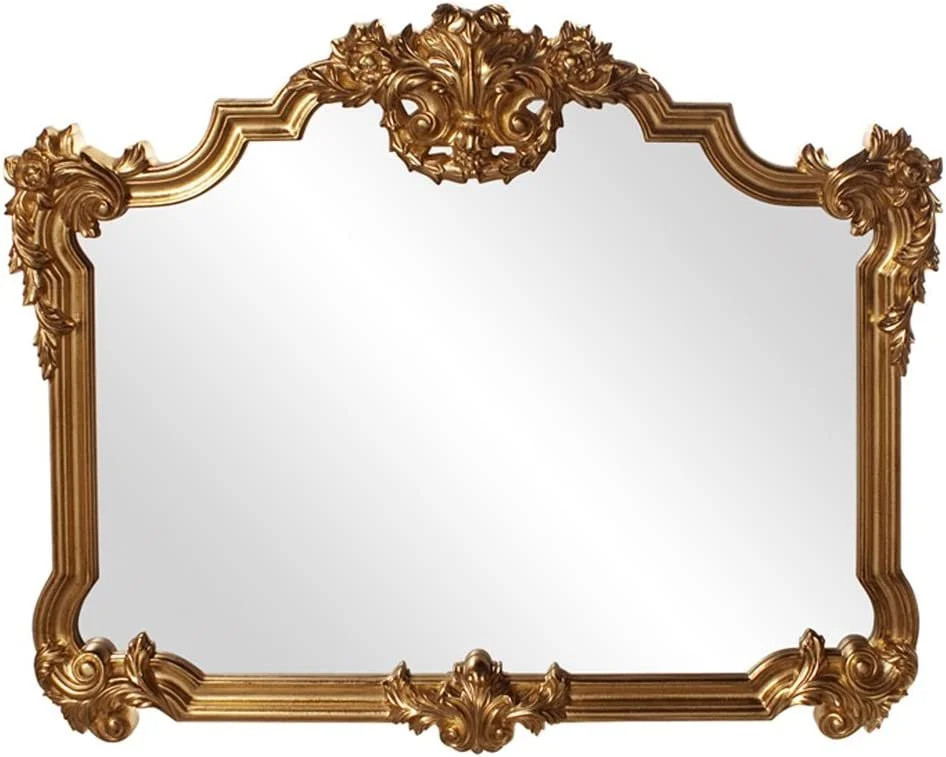

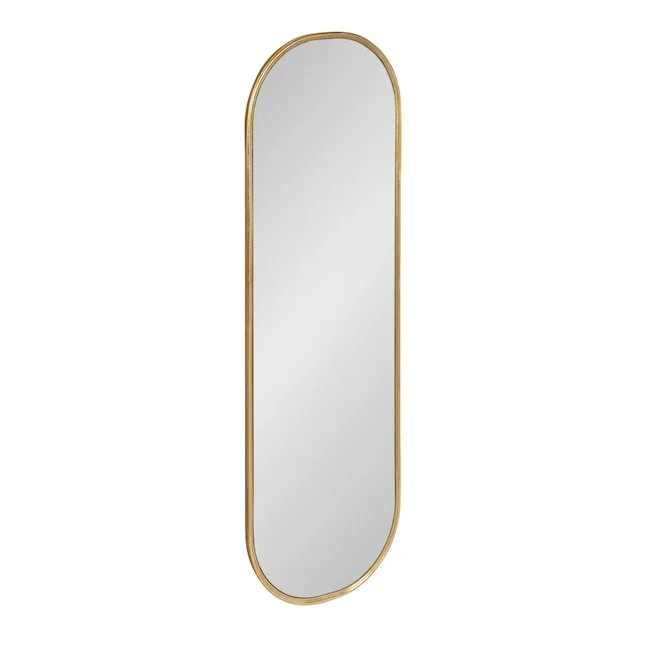

ORDER 5 MIRRORS ABOVE FOR BRICK WALL IN STAIRWAY
ORDER (9) - 3 SETS
ORDER (3) GOLD, WITH PANDORA GOLD TOP - FOR THE (3) SERPENTINE BOOTHS
ORDER (1) VIP ROOM
3D DESIGN VIDEO
4-12-23

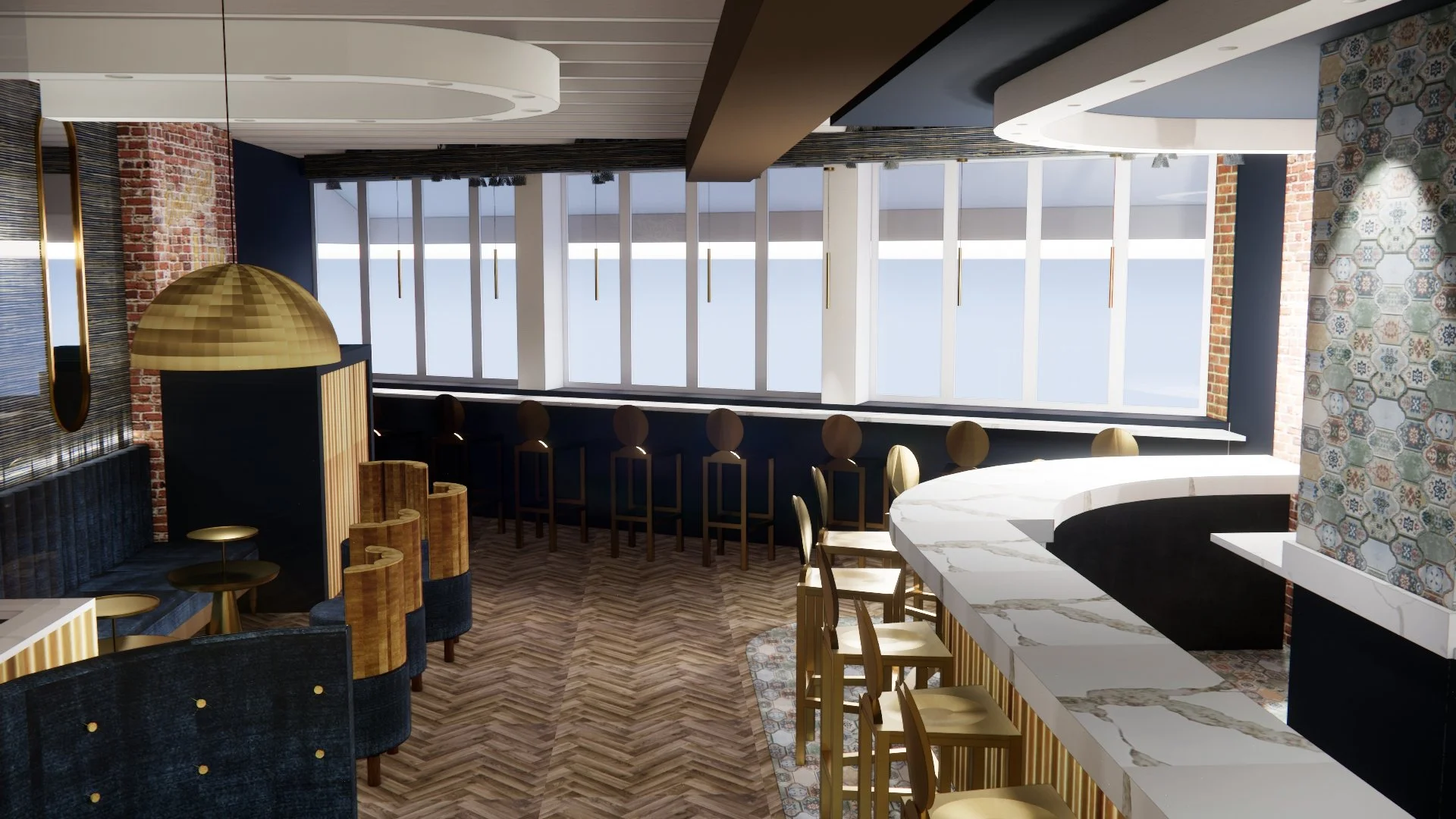

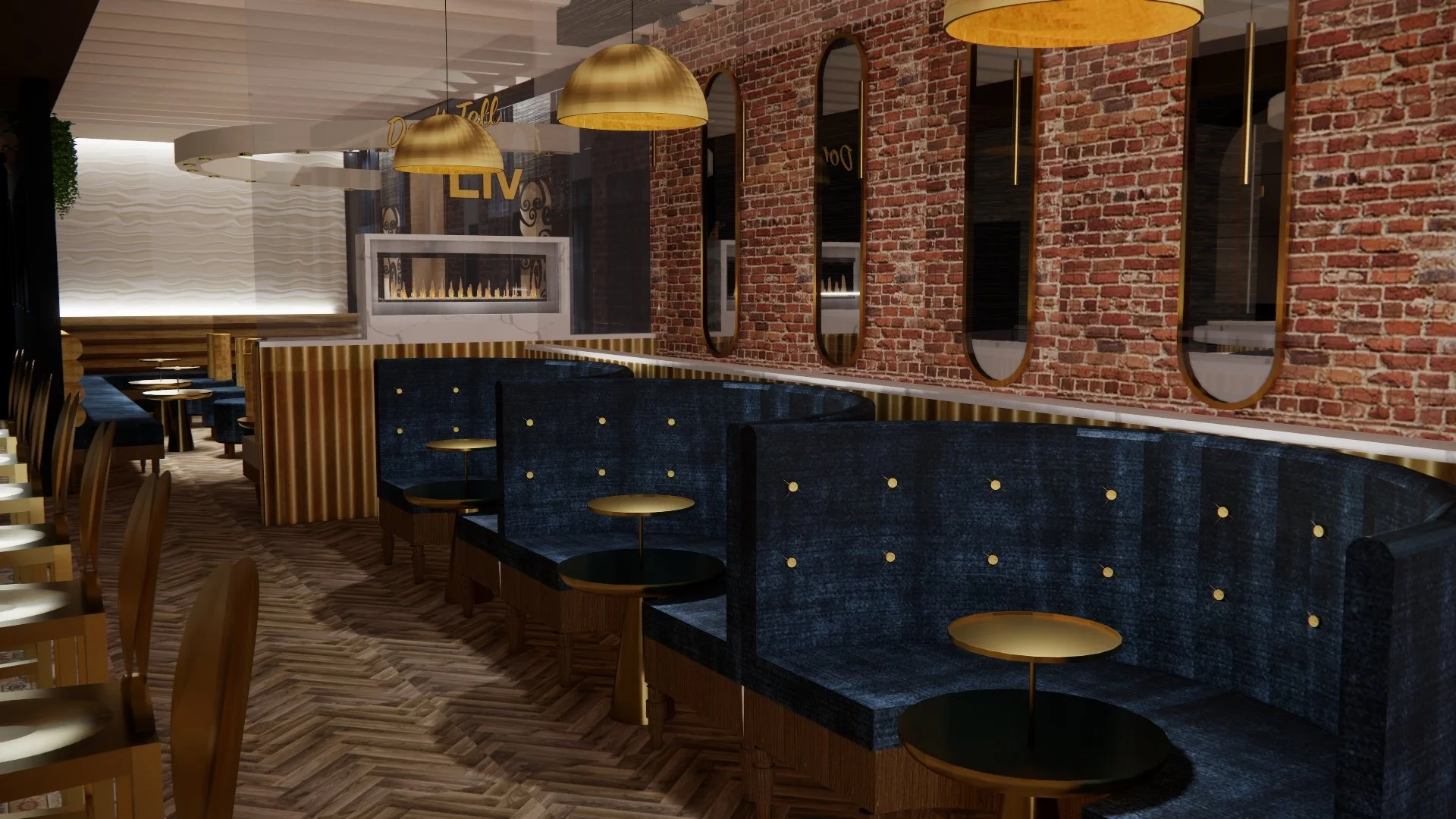

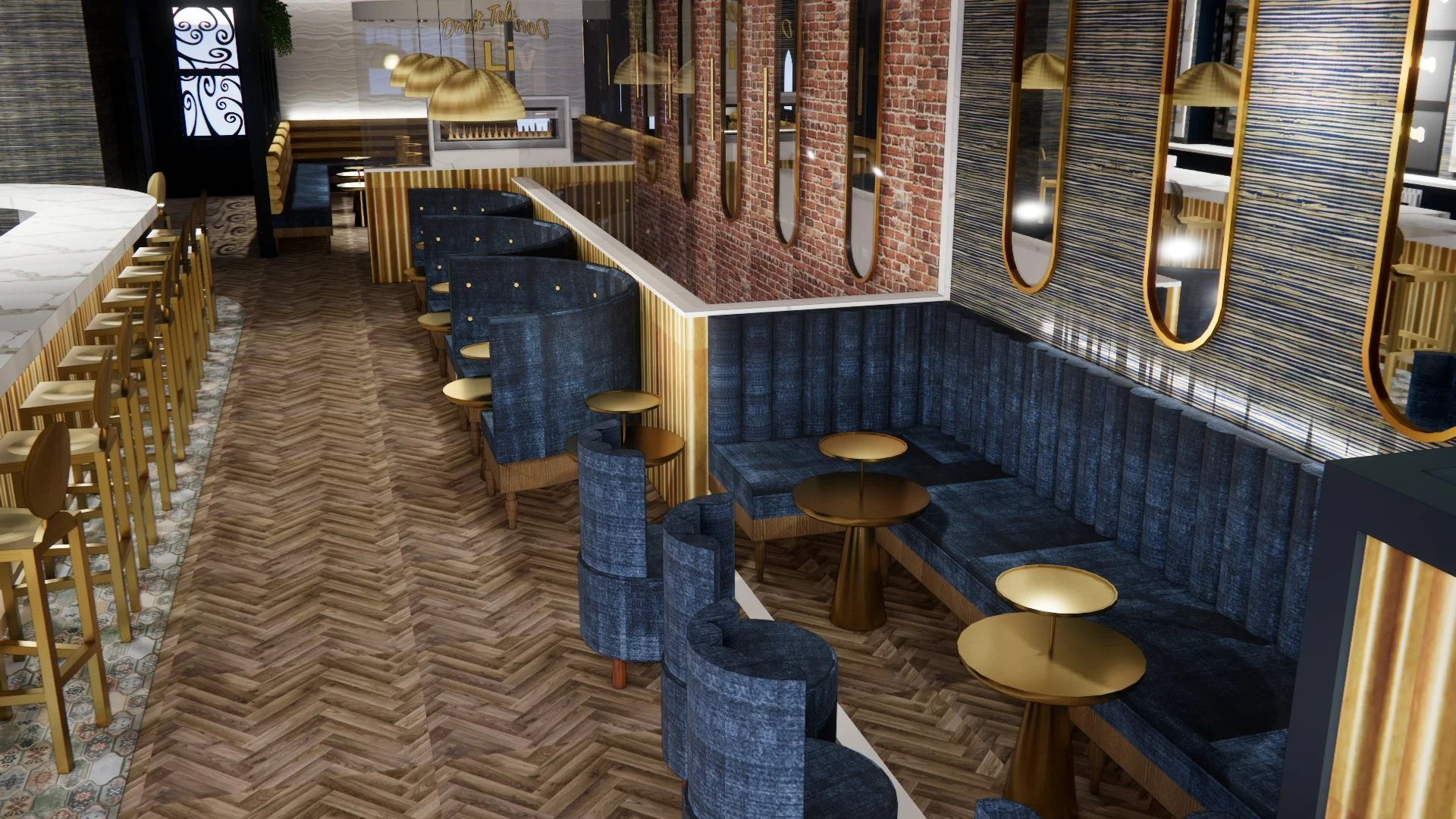

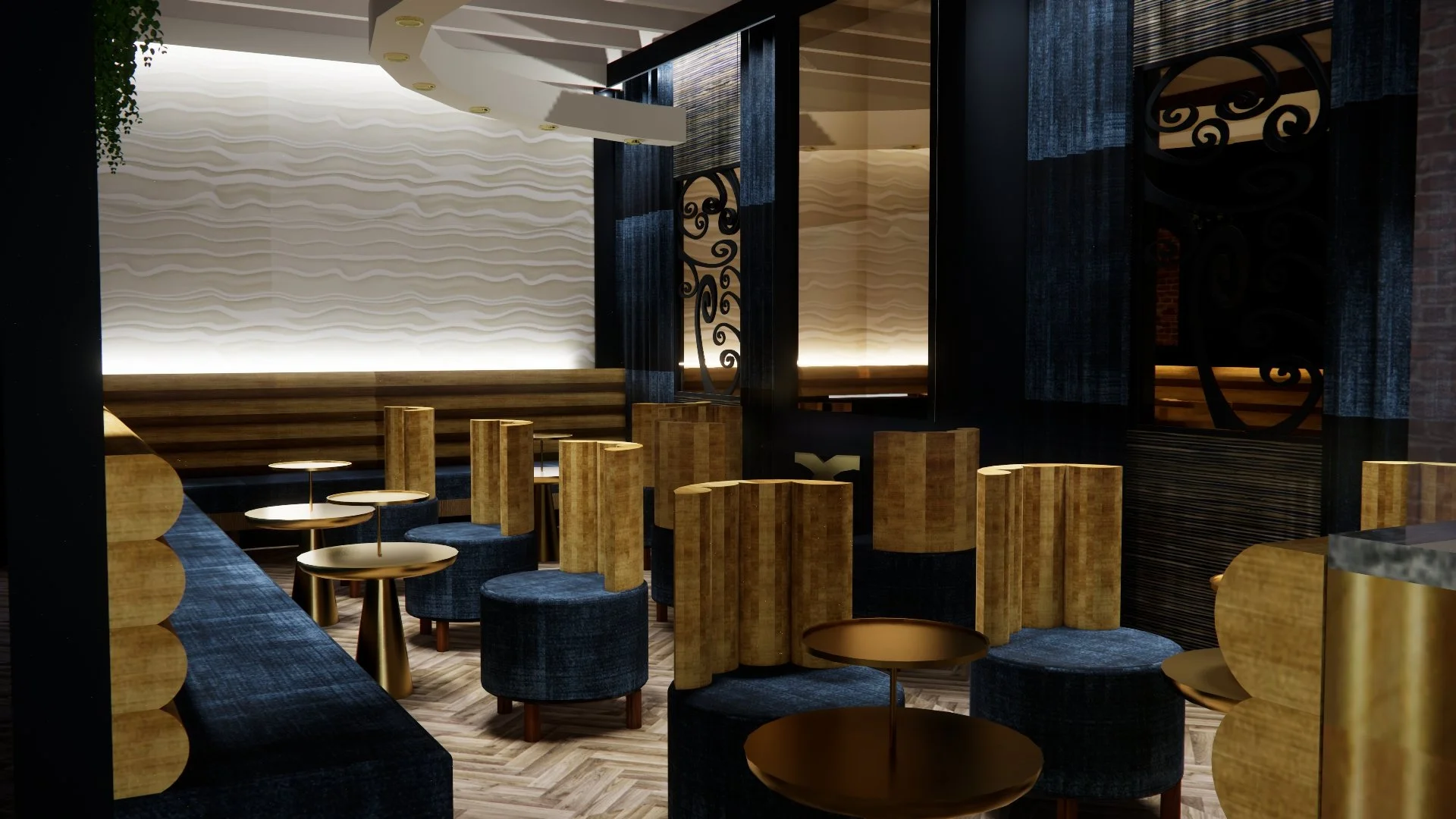

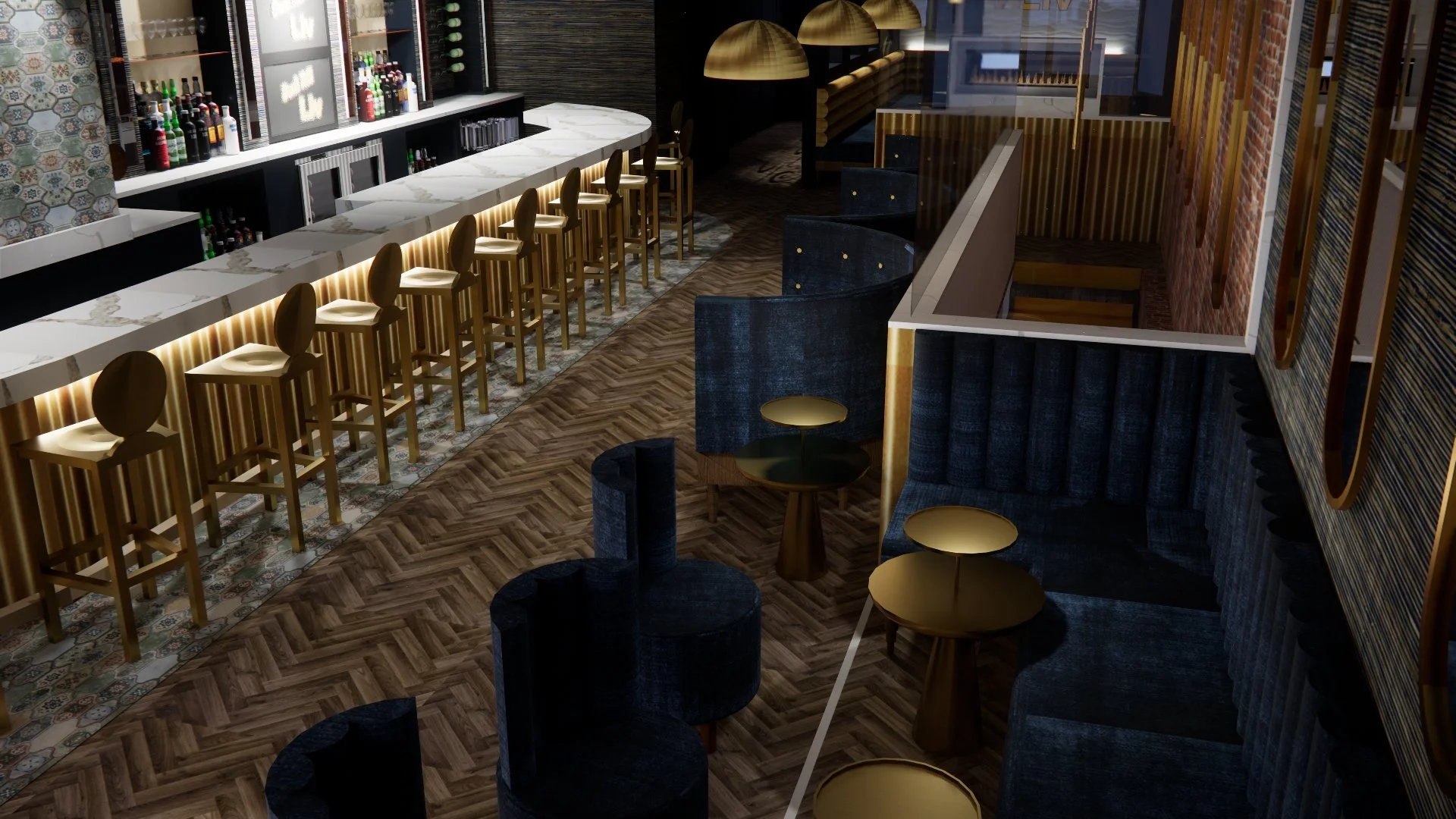

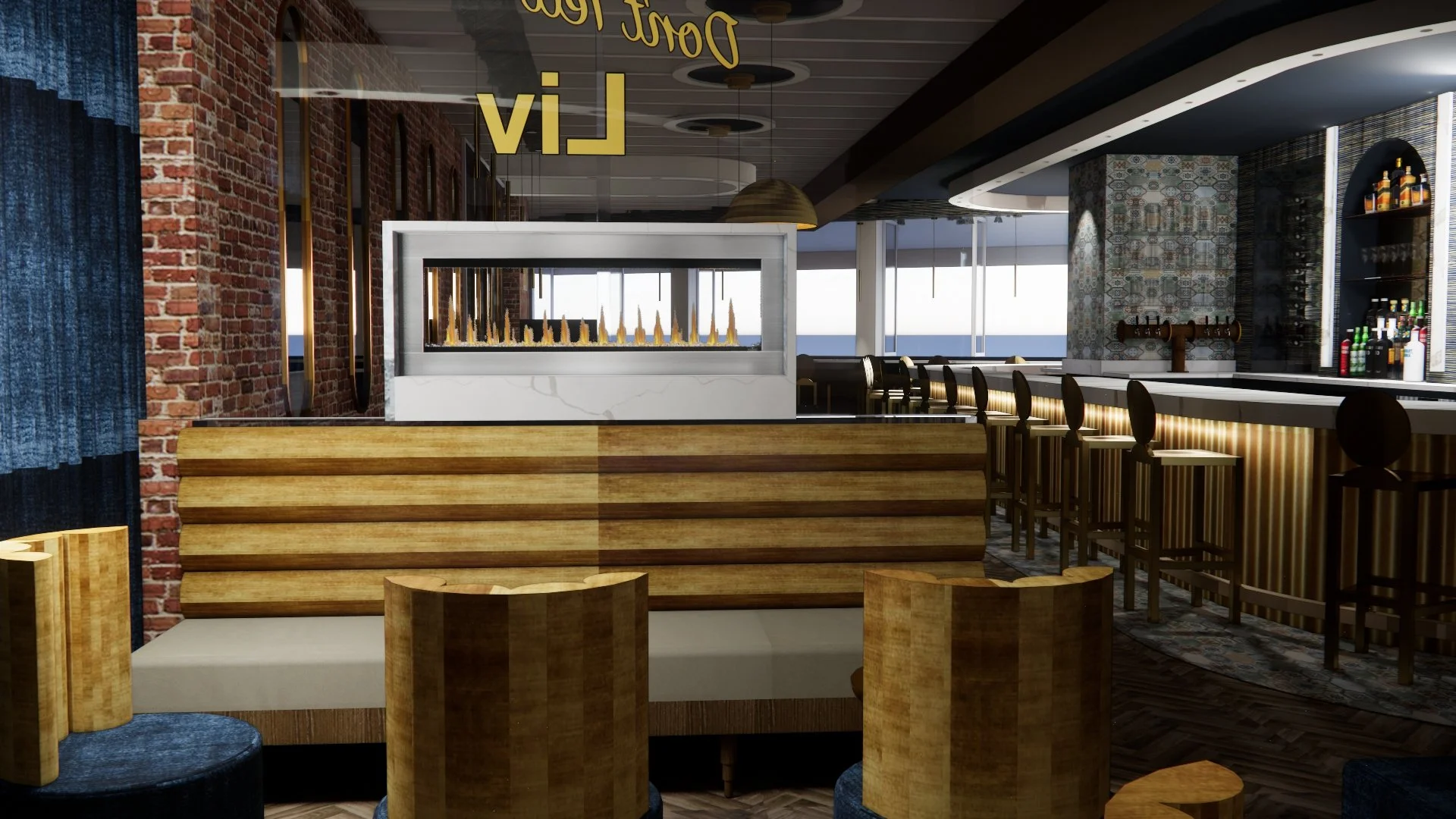

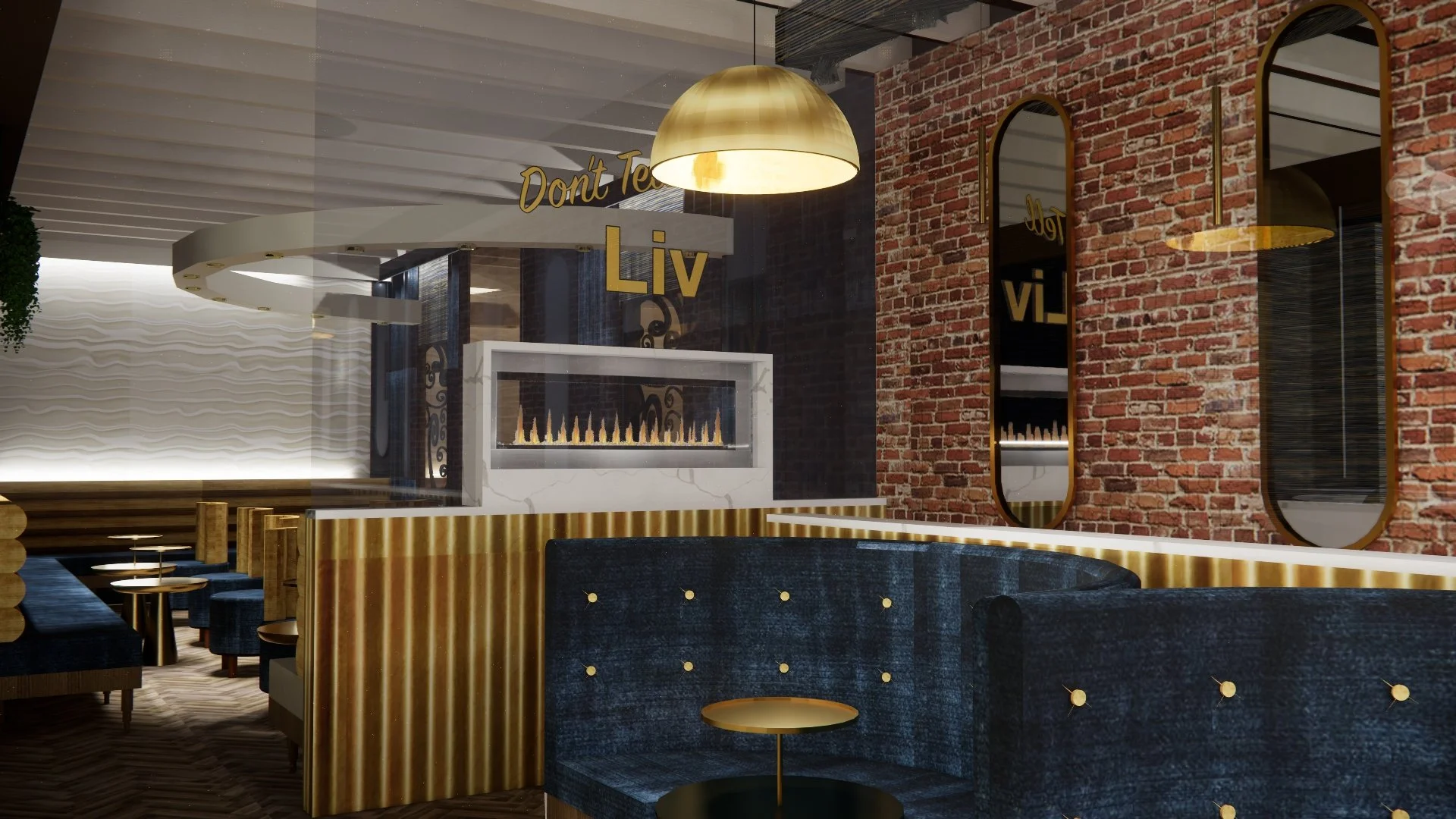

3D RENDERINGS
REVISED LIGHTING PLAN
4-12-23
REVISED FLOOR PLAN
4-1-23
VIP COCkTAIL TABLES
EGGPLANT VELVET FABRIC
REVISIONS
9-20-22
REVISED 3D VIDEO INCLUDES:
-Relocation of Air Handler above restrooms
-Lighter colors added including cream back bar and seats
-All fabric “seat backs” are VELVET
-All fabric “seats” are cracked leather (vinyl)
-Added Velvet Club chairs

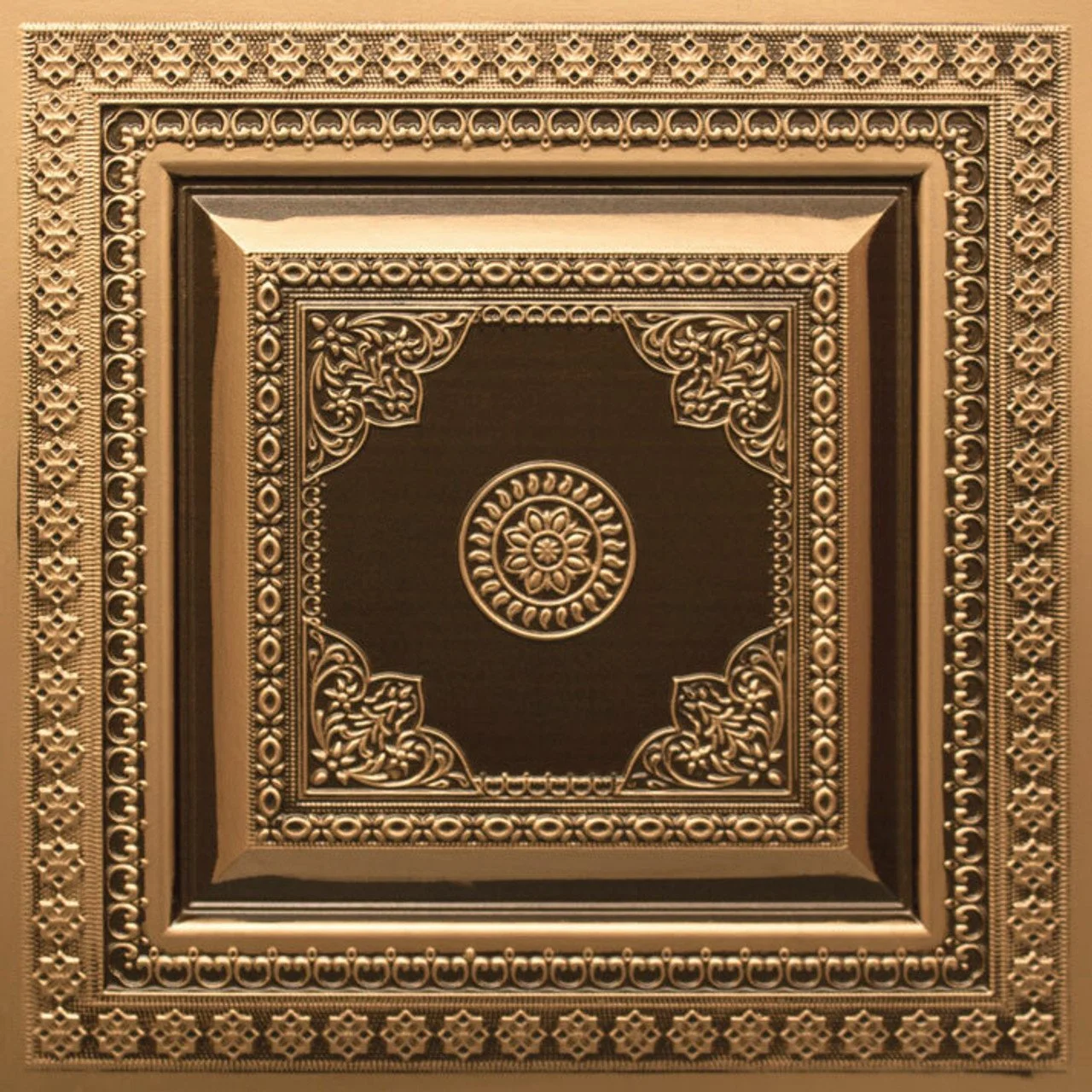

-New gold tile ceiling above bar, although former ceiling looks really good with new colors

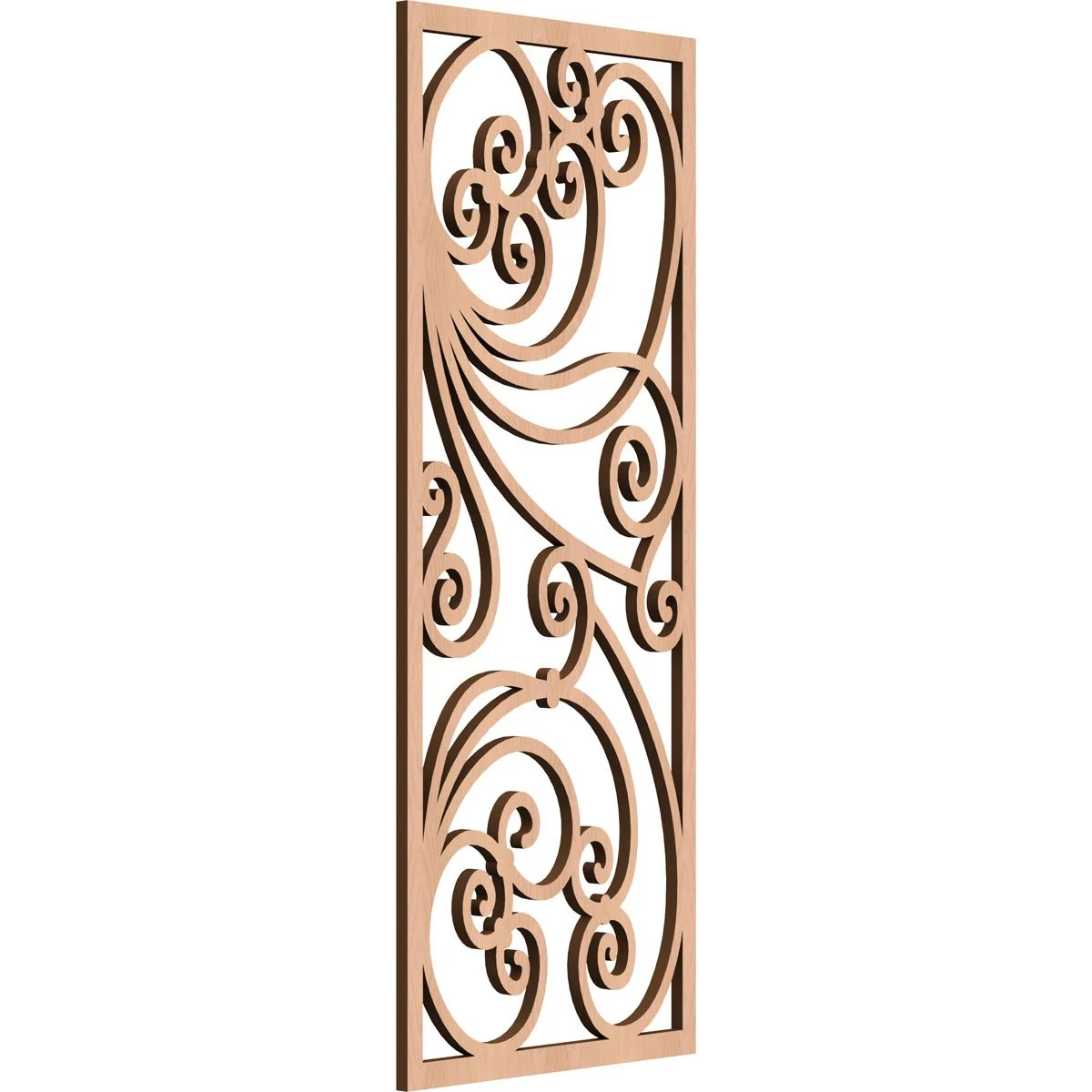

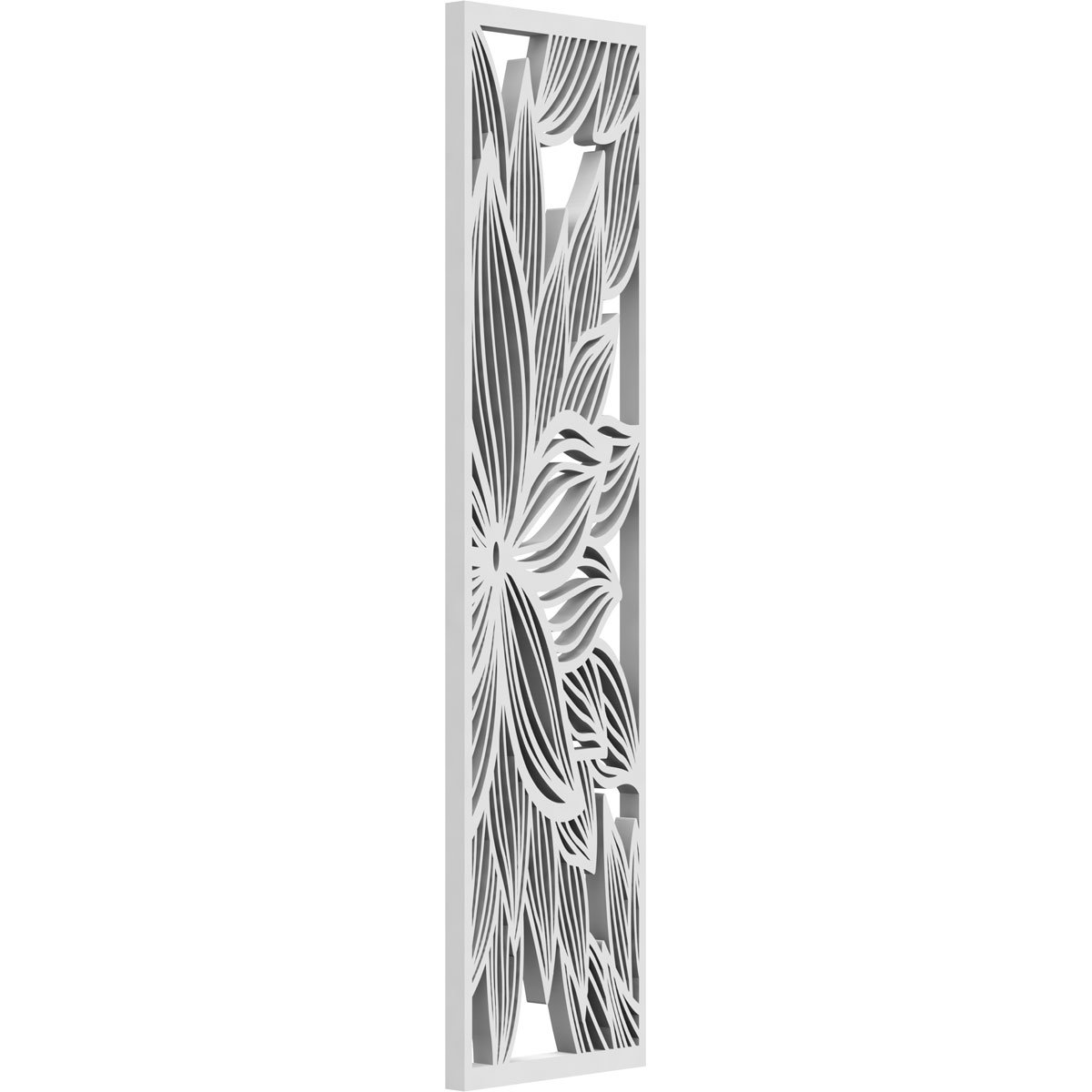

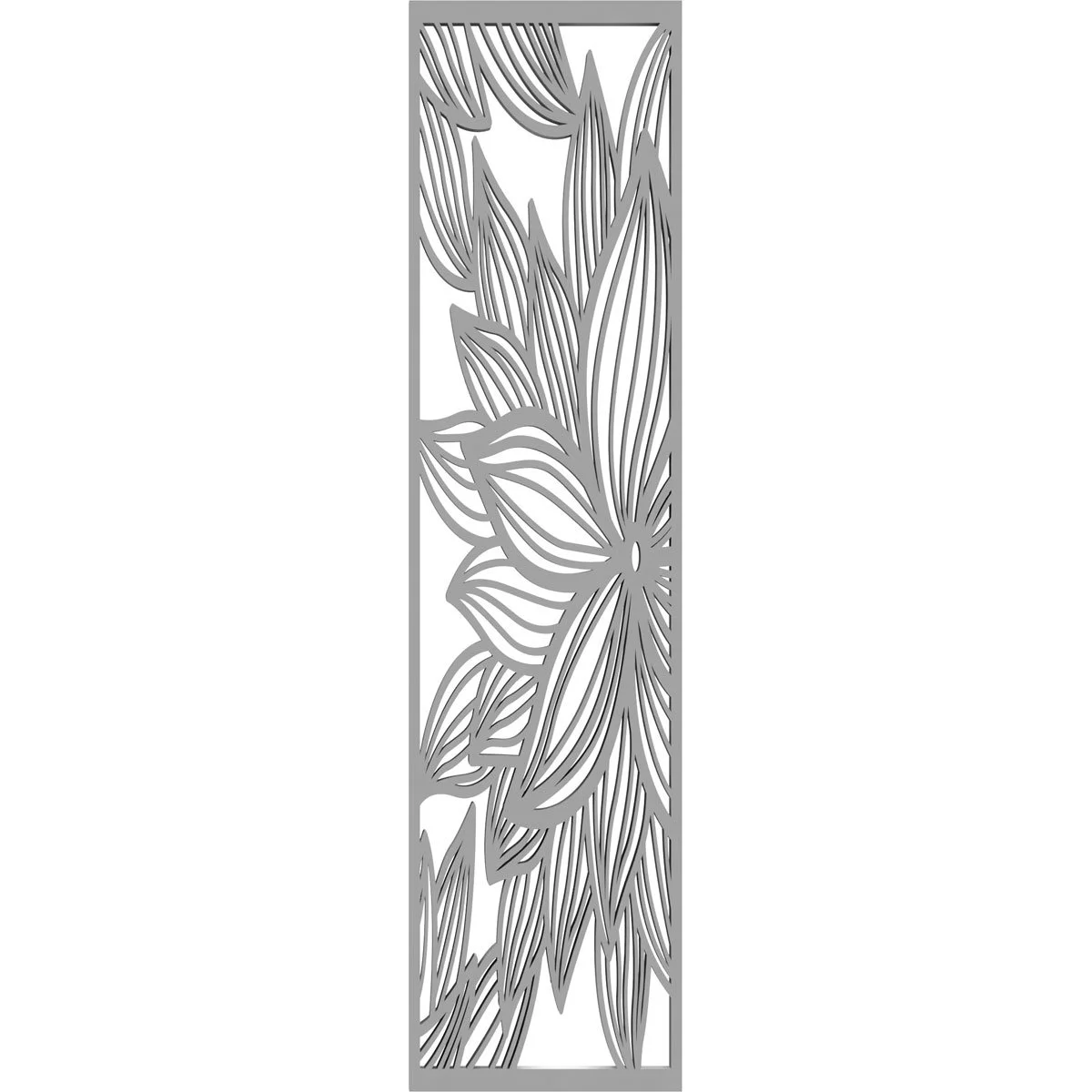

-Added more detail in see-through carved wood panels added
-Included Artist Painted Venus Mural on Brick

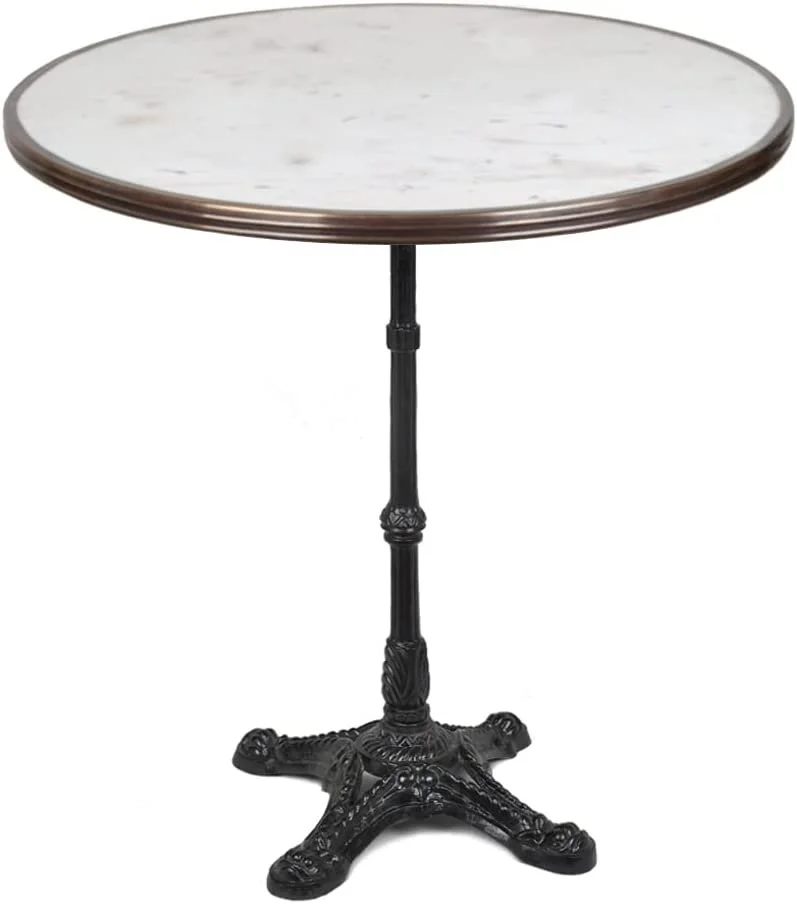

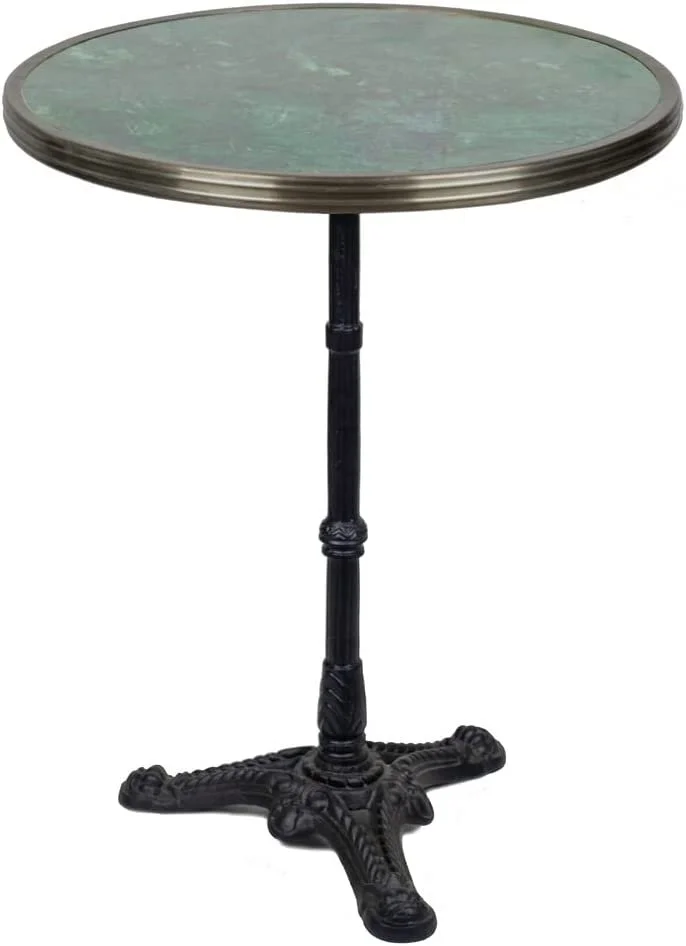

VIP Tables 28”Round 27.5H
Tables for Main Room Serpentines and Banquettes 24”Round, 27.5H
VIP ROOM VELVET BACK
VIP ROOM CRACKED (FAUX LEATHER) SEAT
3D RESTAURANT DESIGN VIDEO
POSTED 9-6-22
LIGHTING PLAN
8-30-22
REVISED FLOOR PLAN
8-22-22
ORDER (2)
FLOOR PLAN
6-26-22

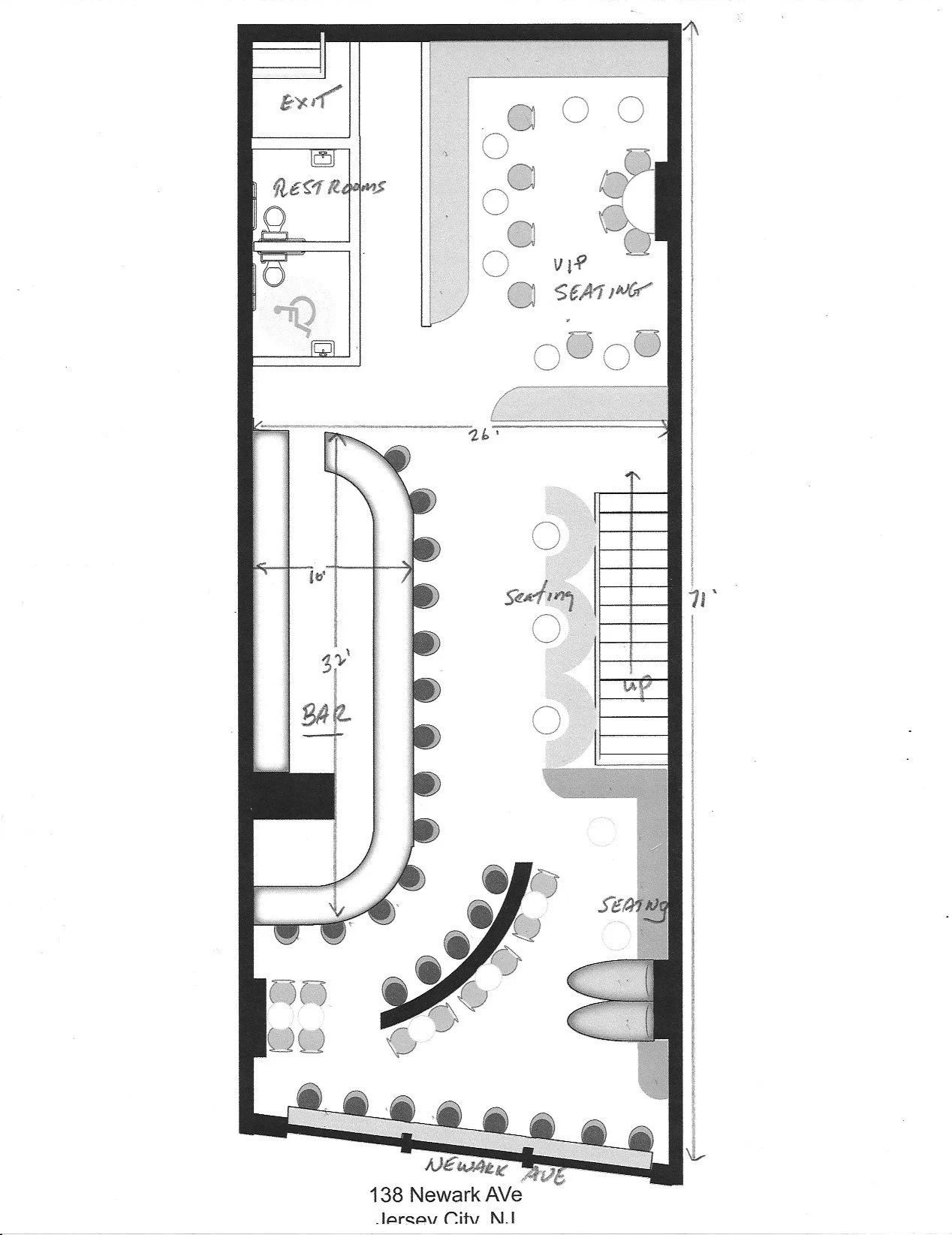

ABC SKETCH
