La Mer

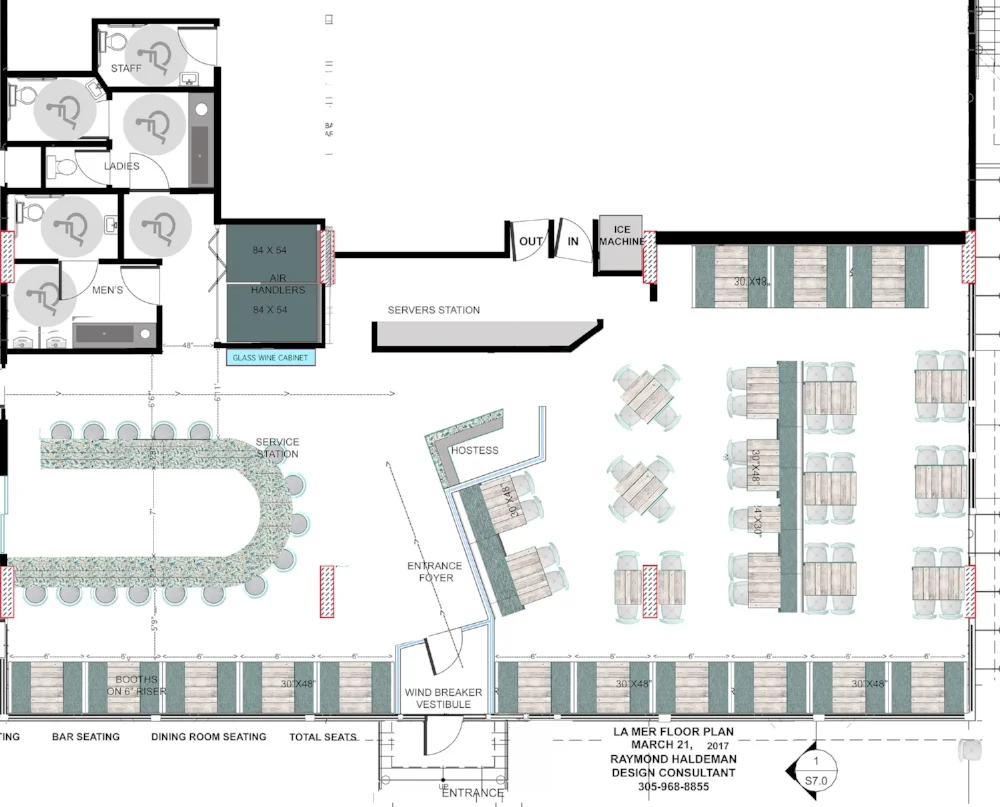

FLOOR PLAN #12
POSTED MARCH 21, 2017

REVISED FLOOR PLAN REVISIONS  #8, #9, #10 #11
4 SSLIGHTLY VARIED SCENARIOS
POSTED MARCH 15, 2017

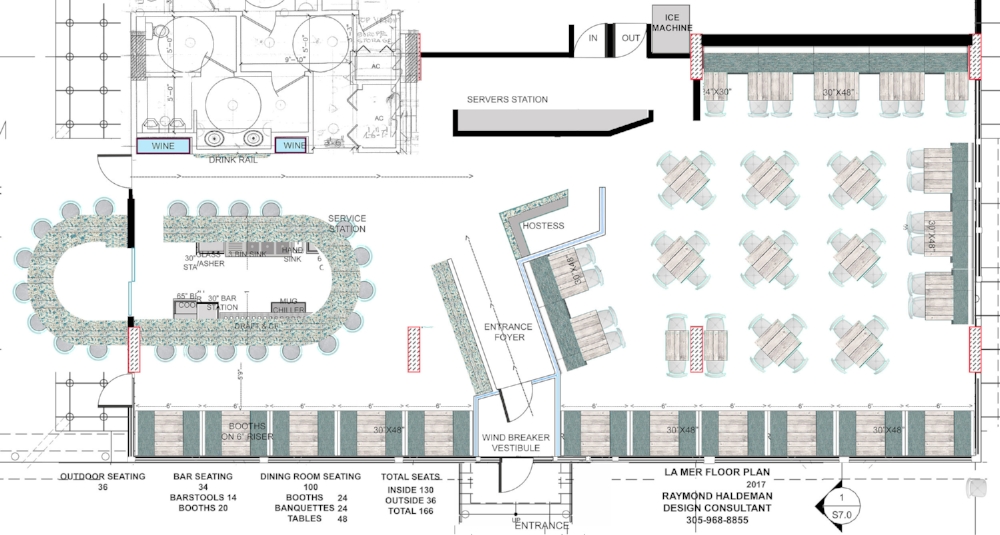

FLOOR PLAN A

Barstools ------14
Bar Booths-----20
Dining Room---96
Outdoor--------(  )

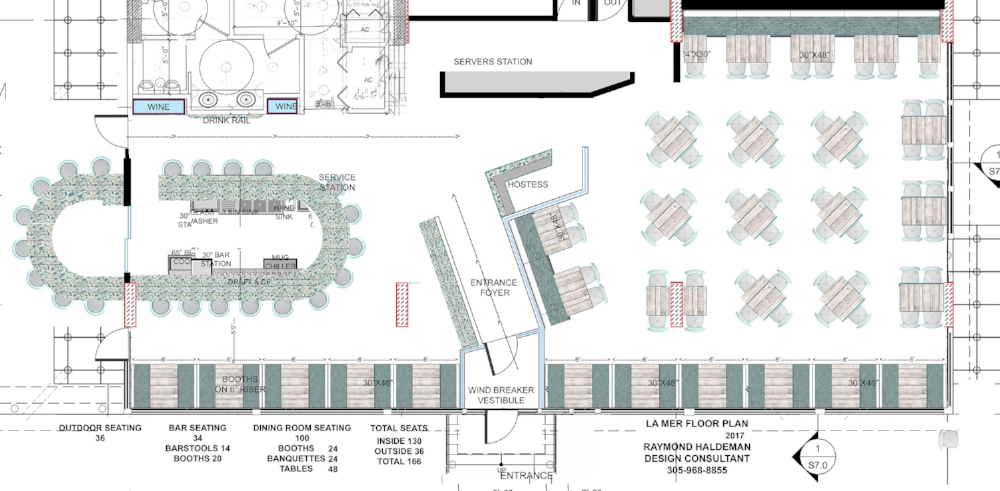

FLOOR PLAN B
By floating the banquette in the room, you eliminate the need for an additional walkway.
Barstools ------14
Bar Booths-----20
Dining Room---98
Outdoor--------(  )

FLOOR PLAN C
Affords the staff and guests the most space between tables, by floating the banquette in the room, you eliminate the need for an additional walkway.  Adds flexibility for creating large parties by sliding a 4 top over to a 4 top at the window.

Barstools ------14
Bar Booths-----20
Dining Room---96
Outdoor--------(  )

FLOOR PLAN D
The banquette doesn't work up against the window in this scenario and additional 18"=24" is needed.  By floating the banquette in the room, you eliminate the need for an additional walkway.
Barstools ------14
Bar Booths-----20
Dining Room---96
Outdoor--------(  )

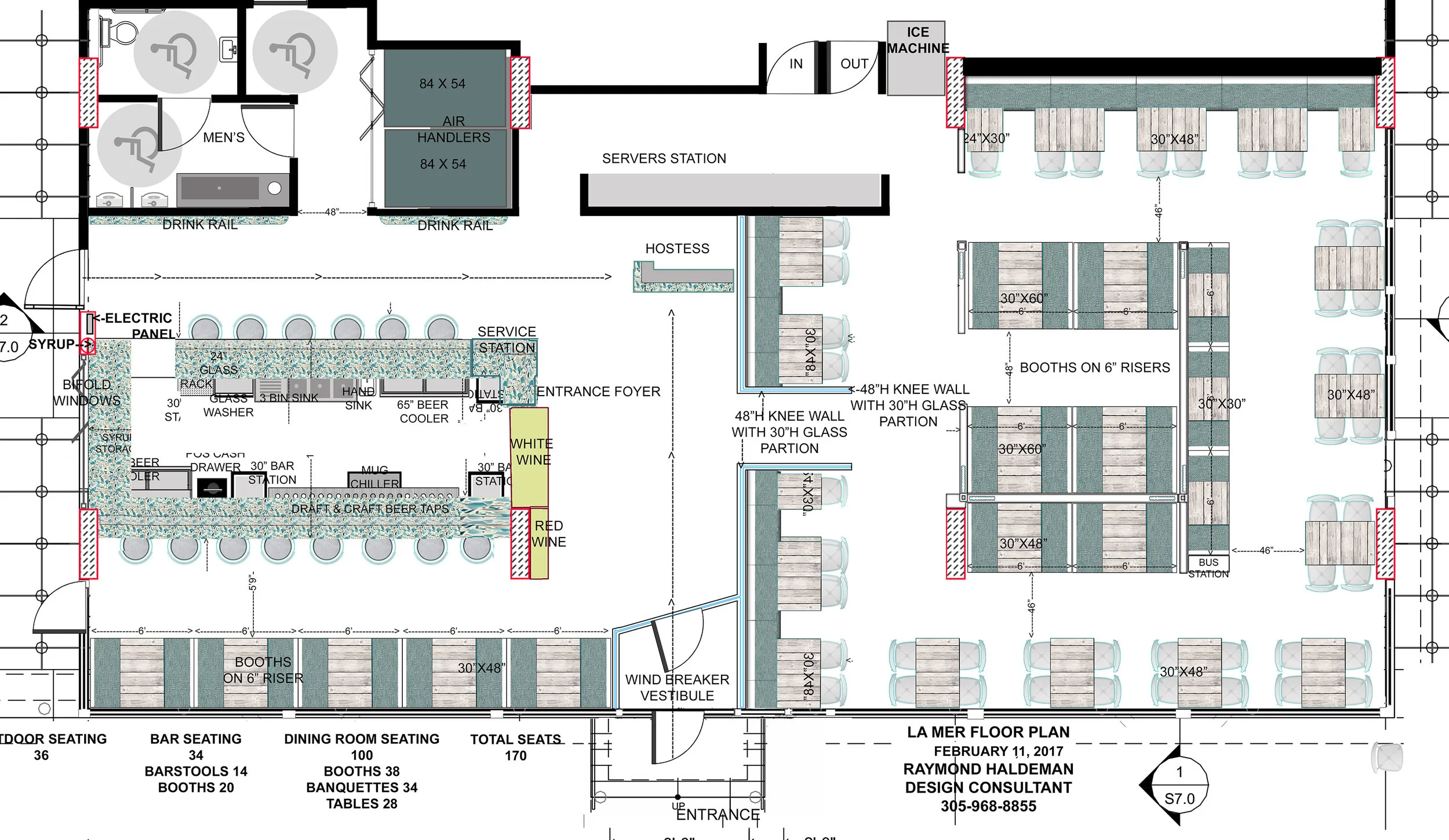

REVISED FLOOR PLAN #7
POSTED FEBRUARY 11, 2017

ISSUES ADDRESSED ON REVISED FLOOR PLAN:

-Unobstructed Customer Egress From Both Hotel Entrance and Main Entrance to the Host Stand in Rear where Gus wanted it
-Large Space for incoming patrons in foyer around Host Stand, minimizing traffic congestion
-Multiple Server Egress to the Dining Room, Bar and Service Bar
-All sight lines to Service area and Kitchen eliminated
-Traffic Flow in Dining Room is now a TOTAL WALK AROUND
-Banquettes added per George adding additional options for large parties
-Illuminated Glass Enclosed Wine Display to Floor Becomes Focal Point of Entrance Foyer
- 30" Glass Partition atop 48" knee wall adds a more sophisticated design element, buffers noise from Bar & Hostess areas from dining patrons and enables addition of more banquette seating.
-High-Tops replaced with Bar Rails that open up walk-way between Bar & Restrooms, yet provide function for bar area.
-Architecturally and Design wise, the dining room is now a beautiful complete symmetrical design with soffit and tray ceiling directly in the center area over booths, will look fantastic! :)



PERMIT PLAN WITH 110 SEATS
POSTED FEBRUARY 7, 2017

REVISED CONCEPTUAL VIDEO
POSTED FEB 8, 2017

REVISED BARSTOOLS (CONCEPTUAL BUT SEARCHING FOR PRODUCT NOW)
POSTED FEB 6, 2017



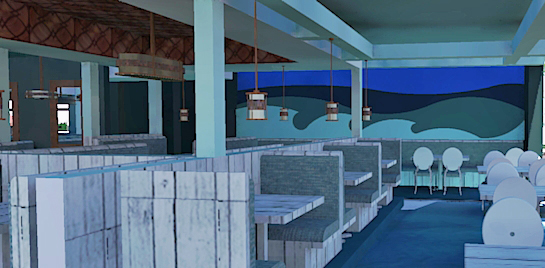

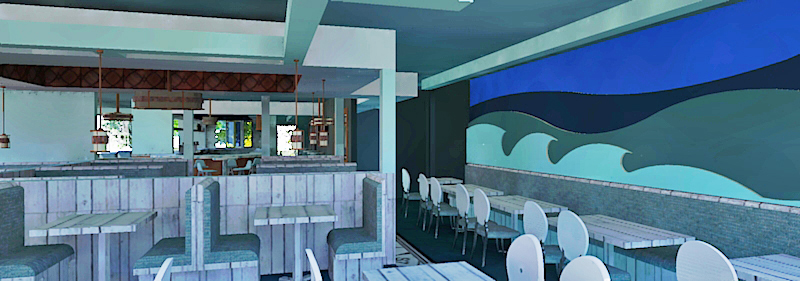

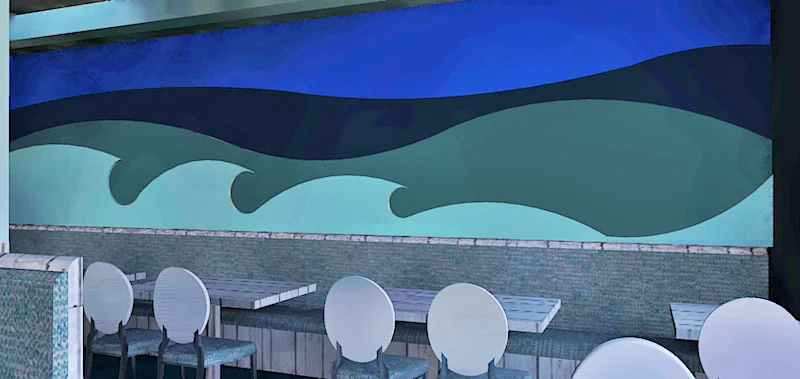

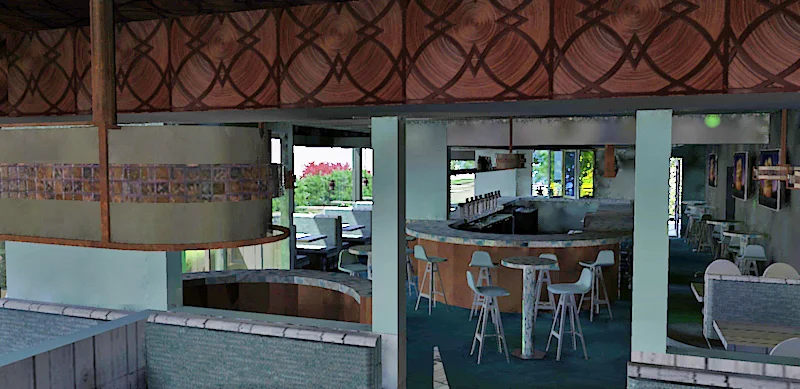

REVISED COPPER CEILING AND WAVE WALL COLORS
FEB 5, 2017

LA MER_RENDERED WALL & COPPER.jpg

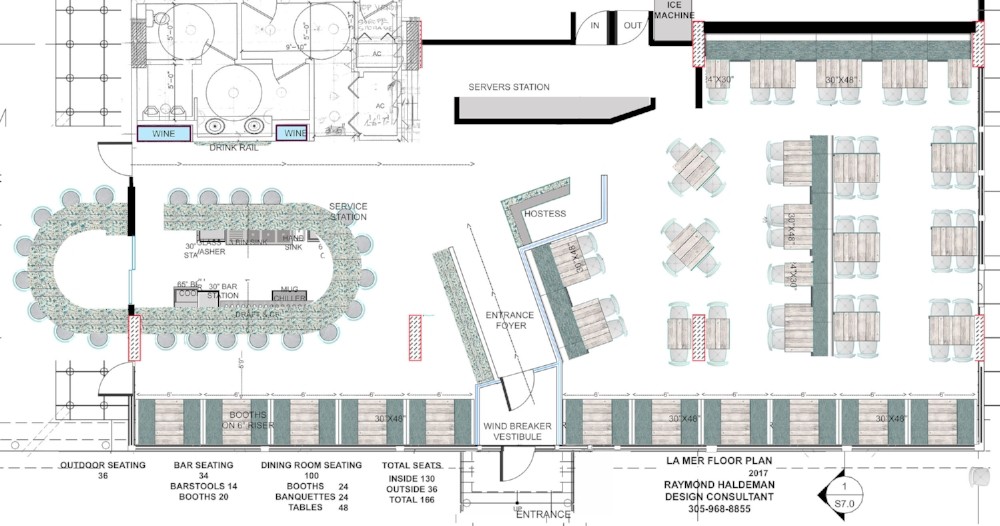

FLOOR PLAN REVISION
#6
POSTED FEBRUARY 5, 2017

LA MER LIGHTING PLAN UPDATED
FEBRUARY 5, 2017

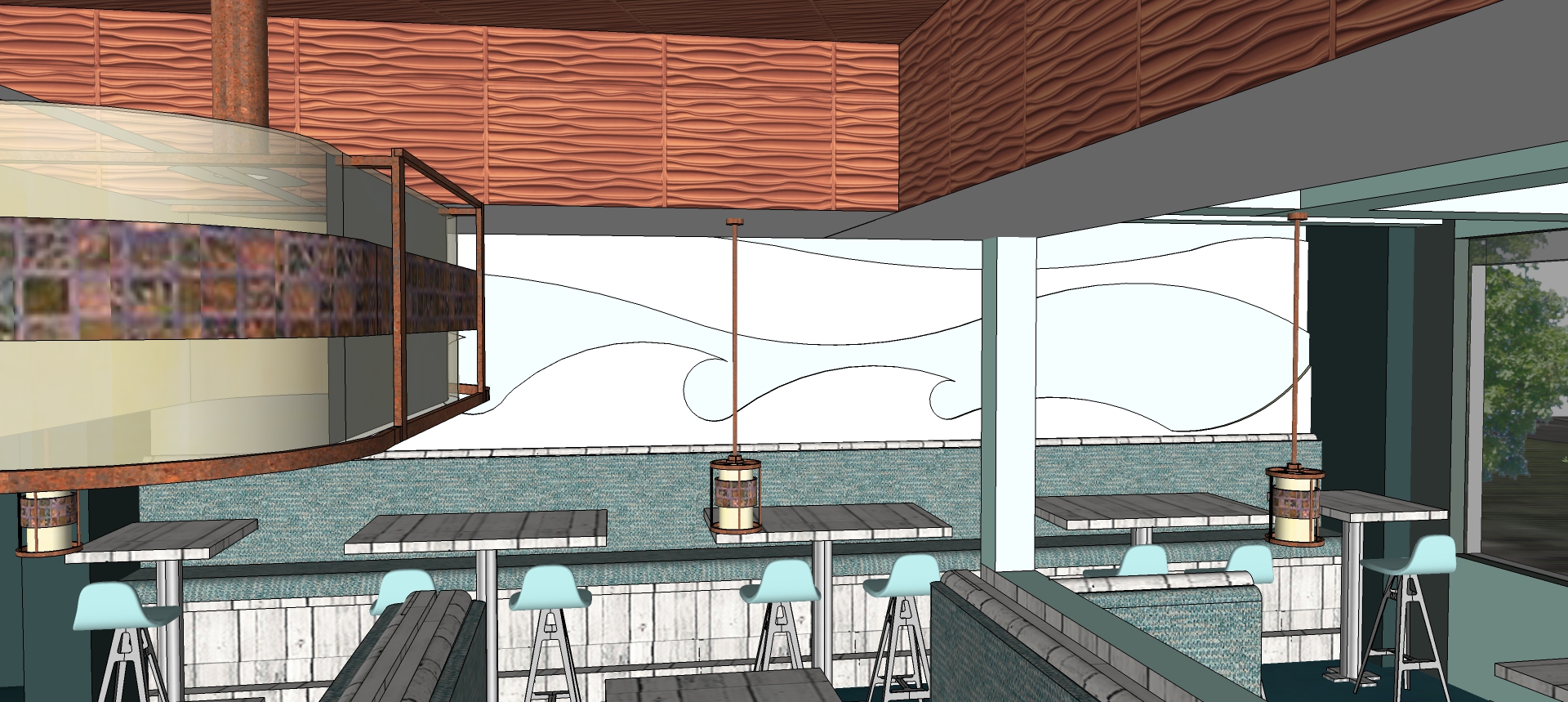

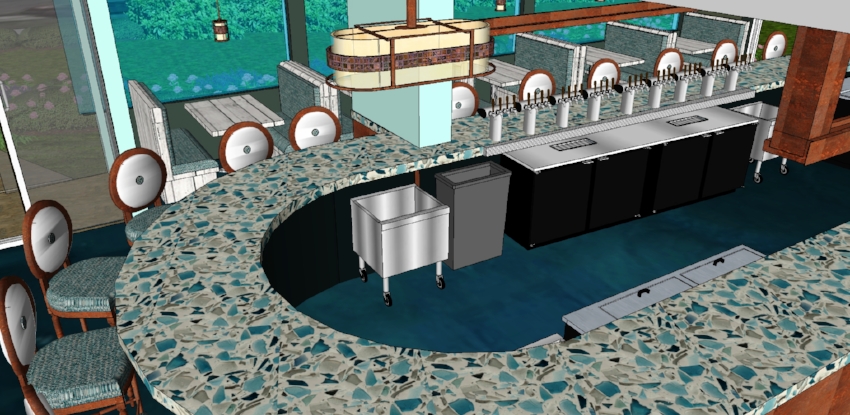

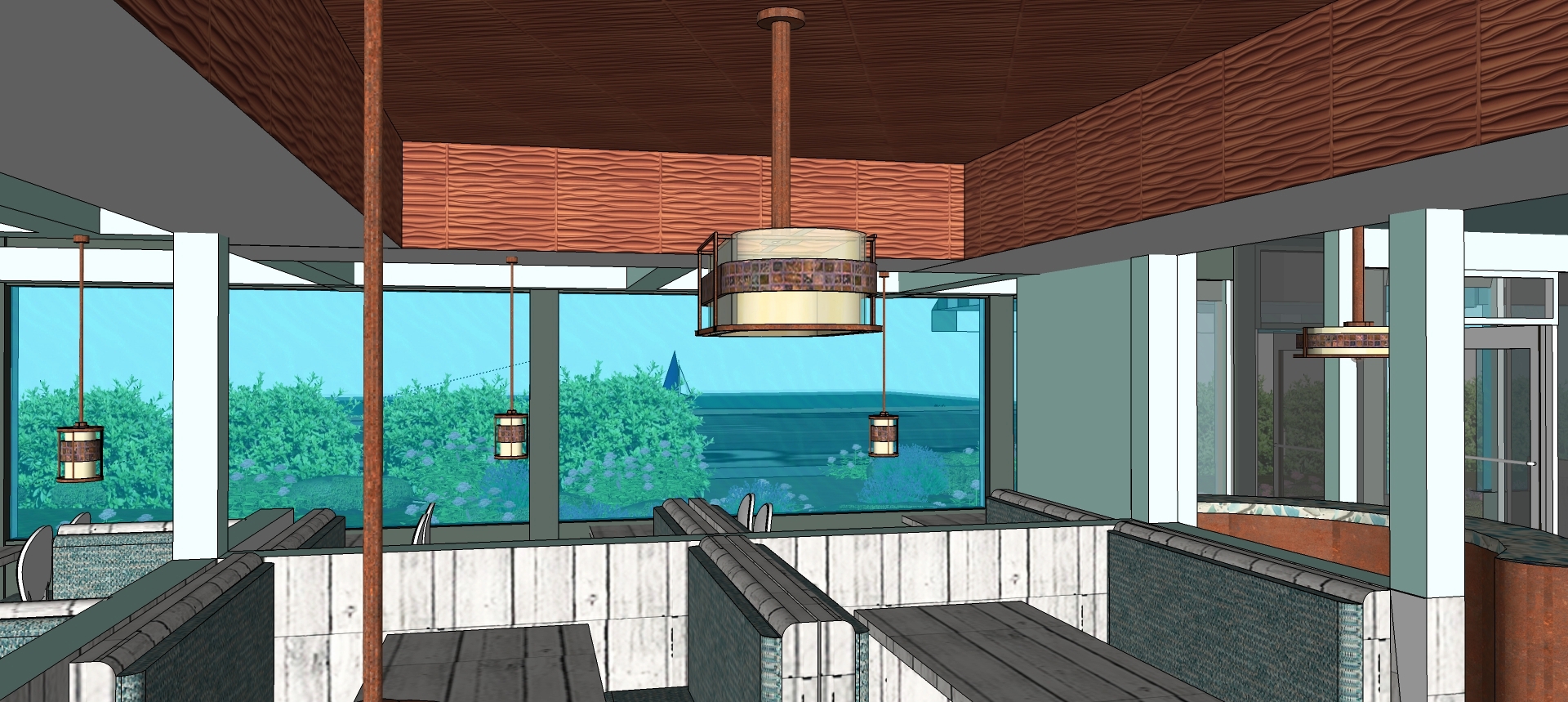

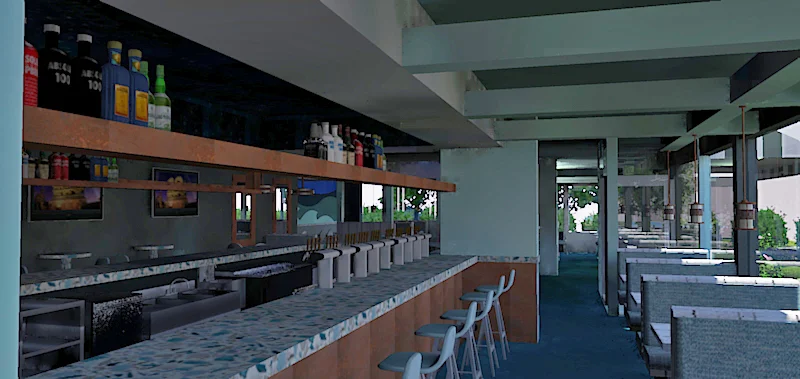

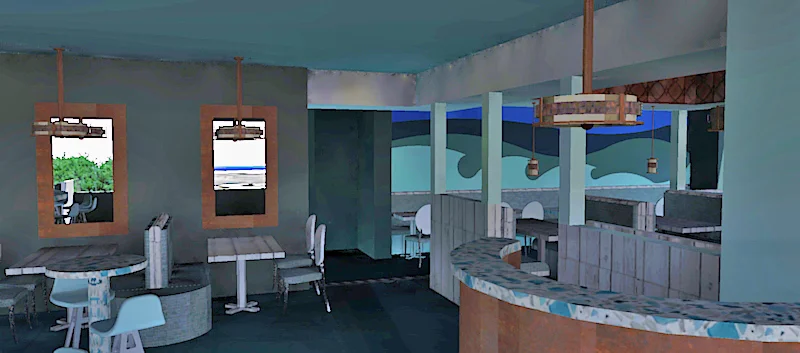

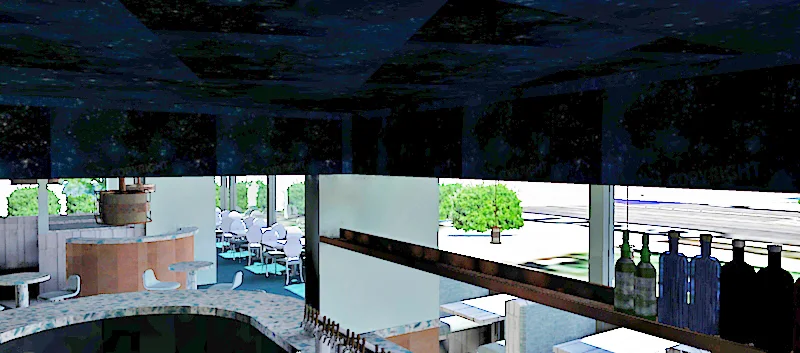

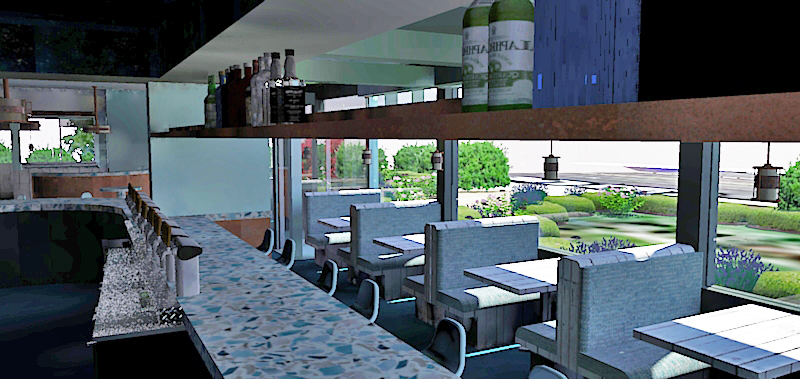

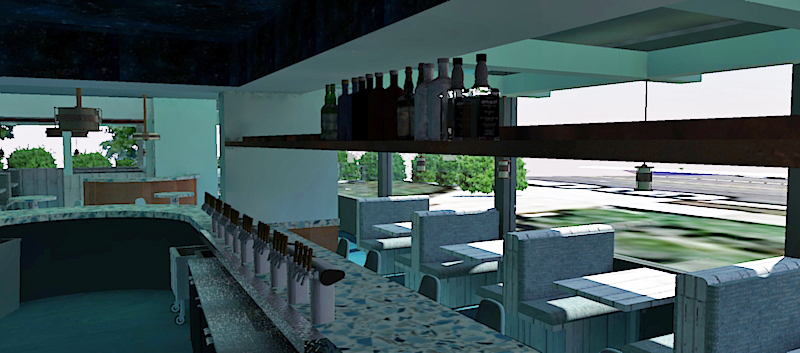

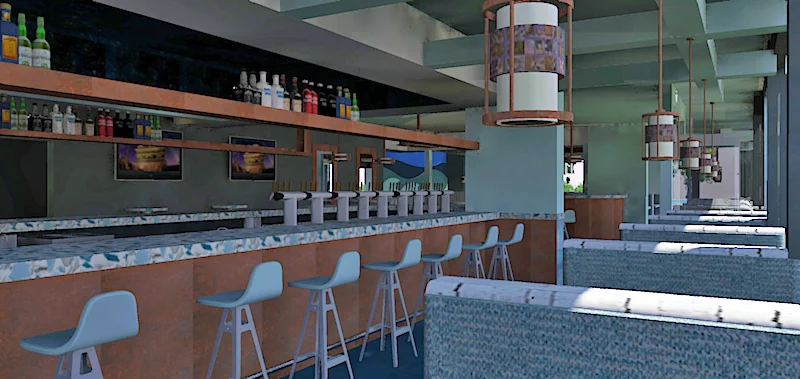

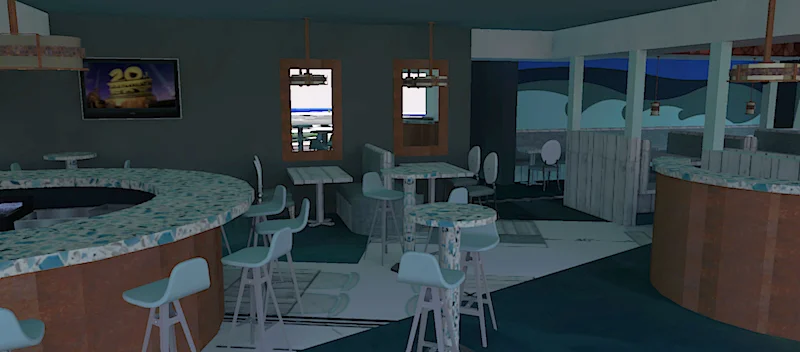

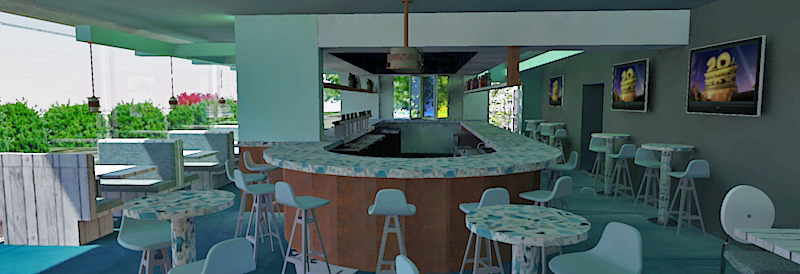

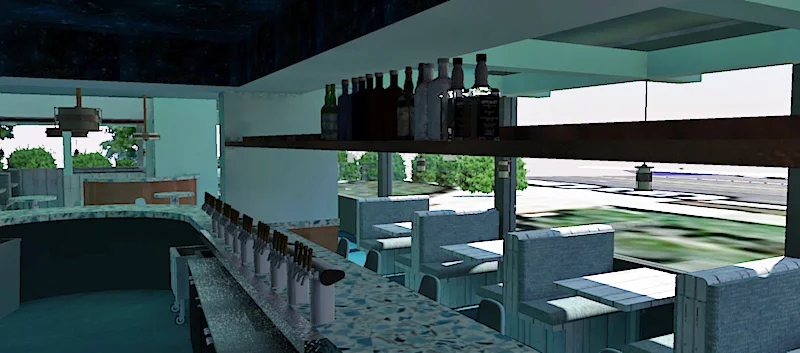

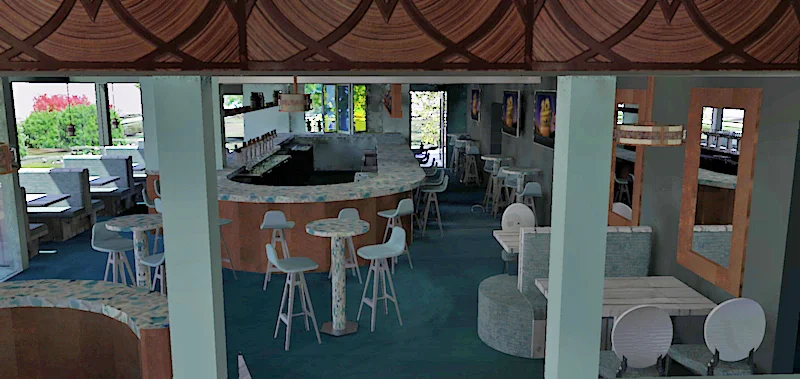

CONCEPTUAL DESIGN RENDERINGS
JANUANRY 30, 2017

CEILING GRID

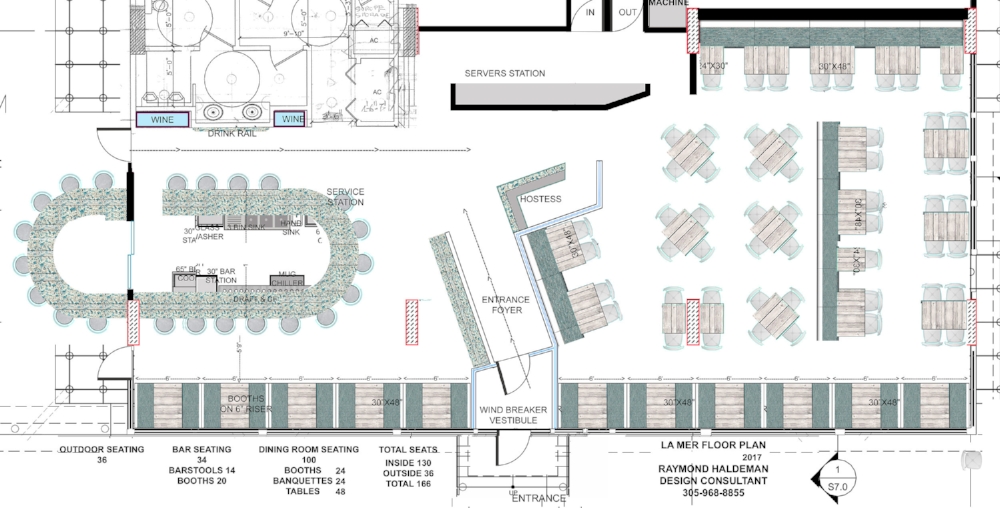

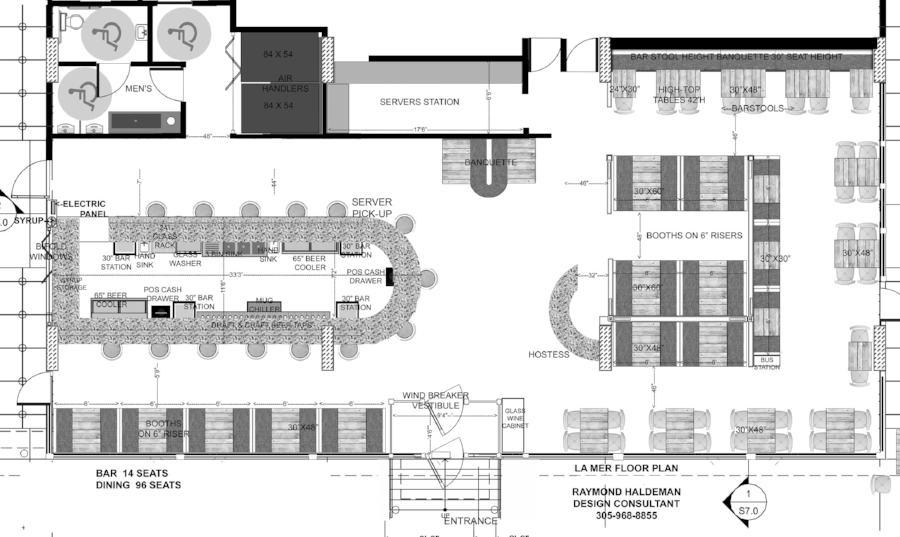

FLOOR PLAN #3
POSTED JANUARY 27, 2017

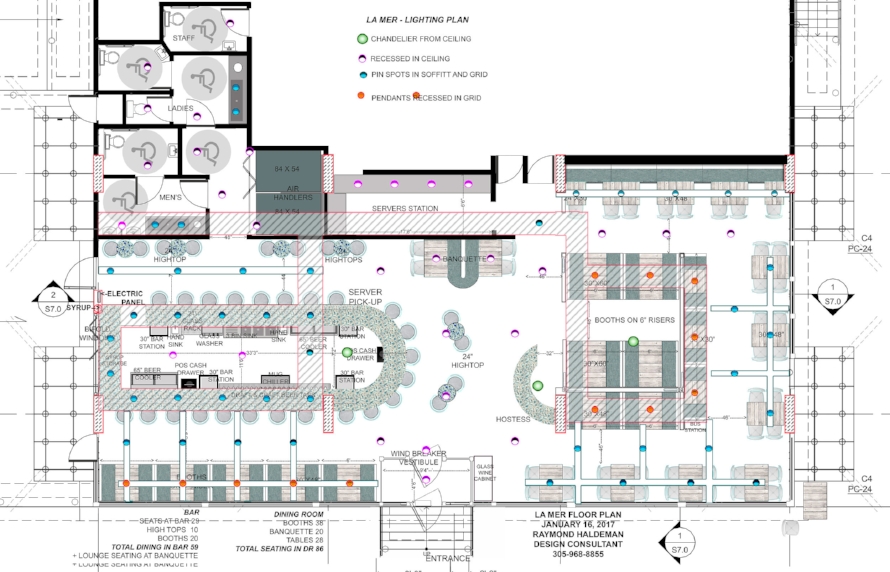

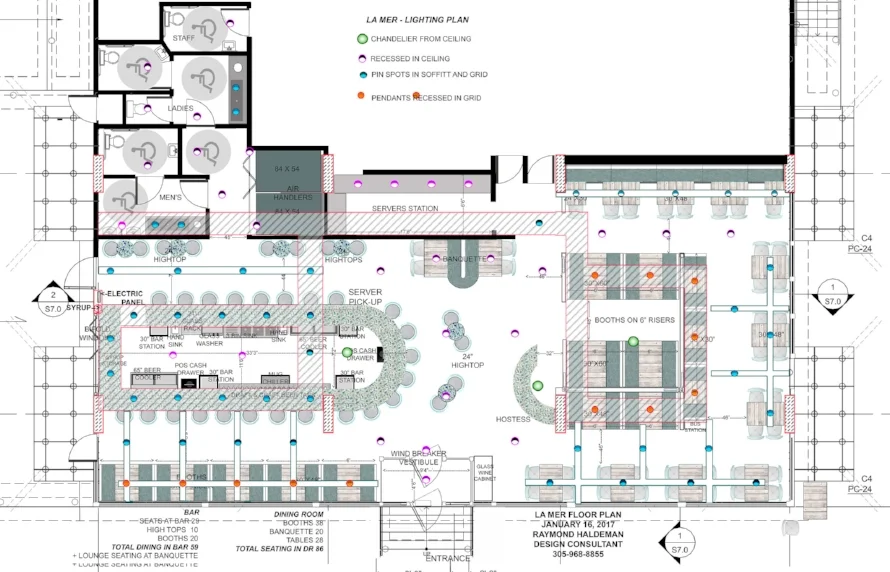

LIGHTING PLAN
POSTED JANUARY 27, 2017

FLOOR PLAN REPLACING BOOTH SEATING AREA WITH FREE FLOATING TABLES
POSTED JANUARY 23, 2107

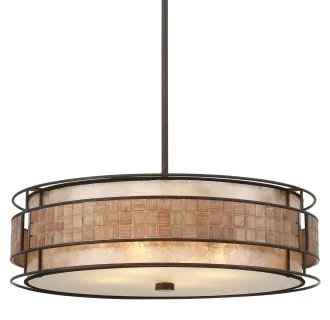

 16"W

16"W

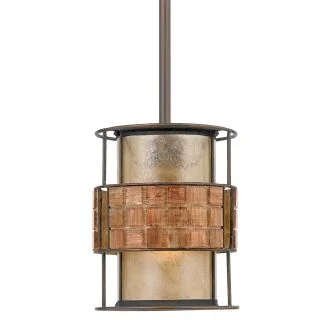

 6"W

6"W

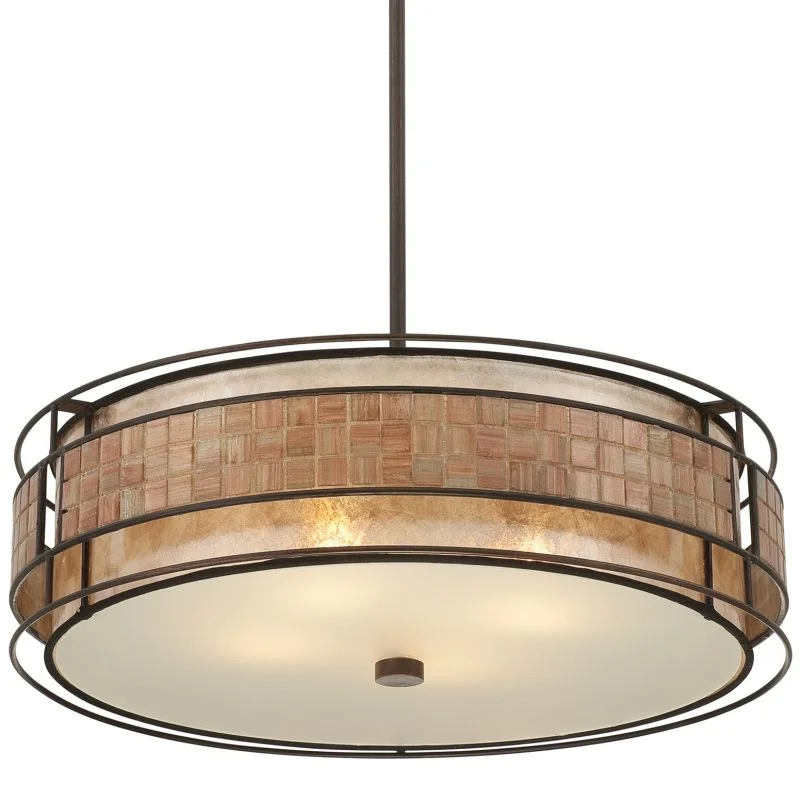

 22"W

22"W

 37"

37"

POLISHED CONCRETE FLOORING

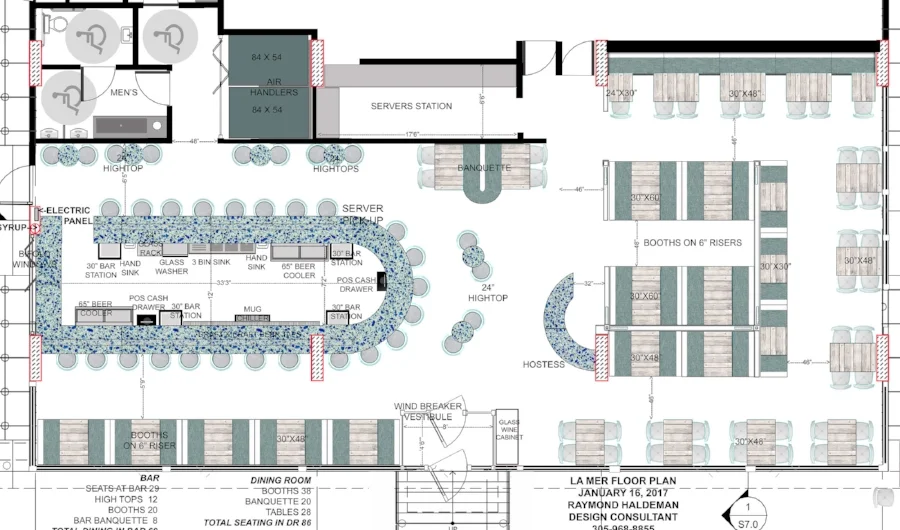

RESTAURANT FLOOR PLAN #3
POSTED JANUARY 17, 2017

TOTAL SEATING AT BOOTHS, BANQUETTES AND TABLES & CHAIRS 114

TOTAL SEATING AT BAR AND HIGH-TOPS 41

TOTAL SEATING 155

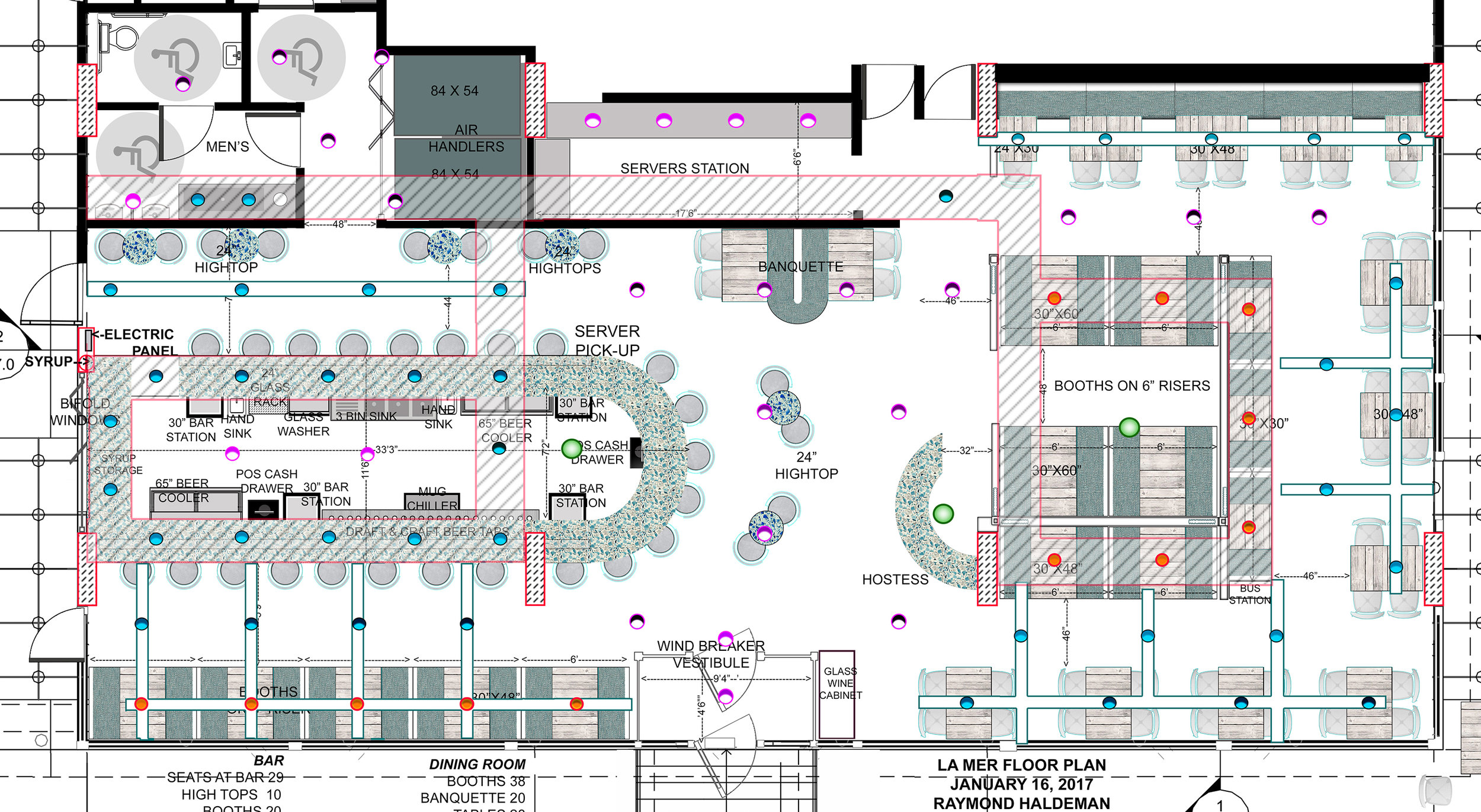

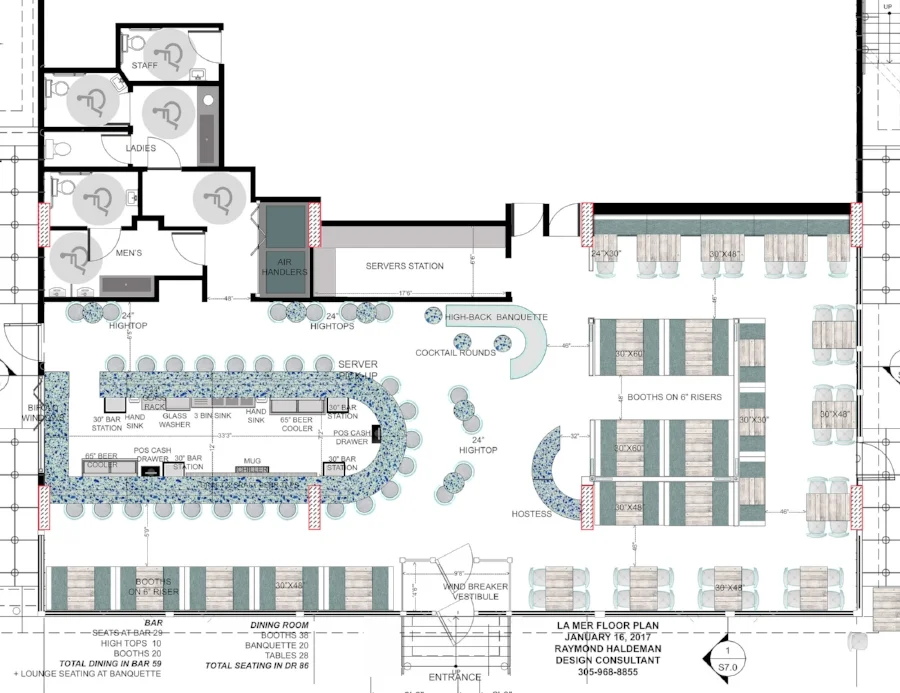

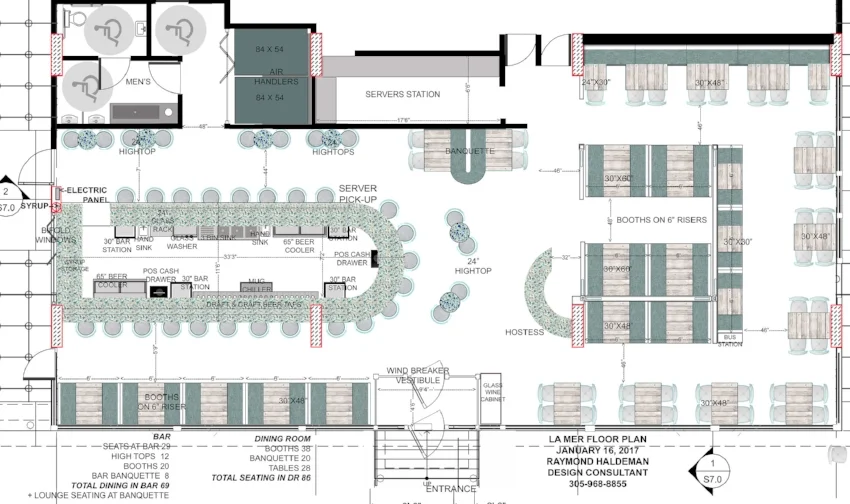

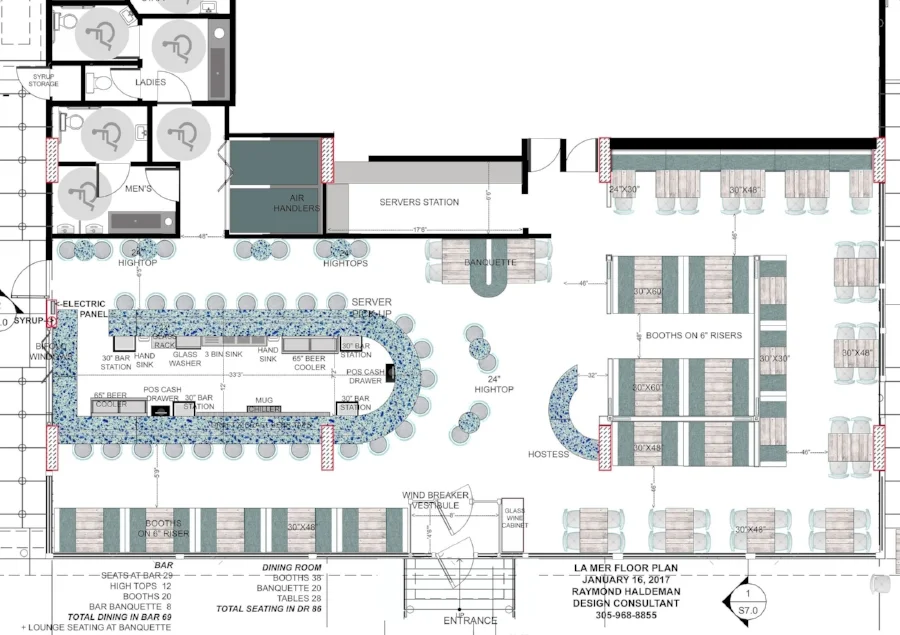

RESTAURANT FLOOR PLAN #2
POSTED JANUARY 16, 2017

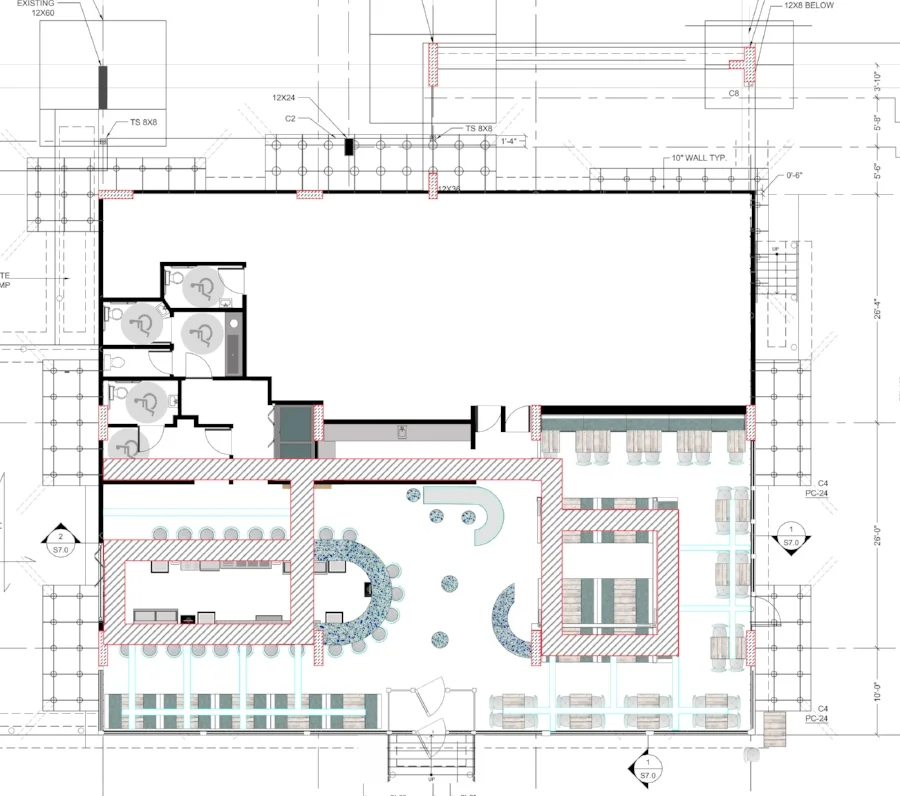

RESTAURANT SOFFIT & CEILING GRID WITH FOUNDATIONS FOOTERS
POSTED JANUARY 16, 2017

RESTAURANT SOFFIT & CEILING GRID WITH FOUNDATIONS FOOTERS
POSTED JANUARY 16, 2017

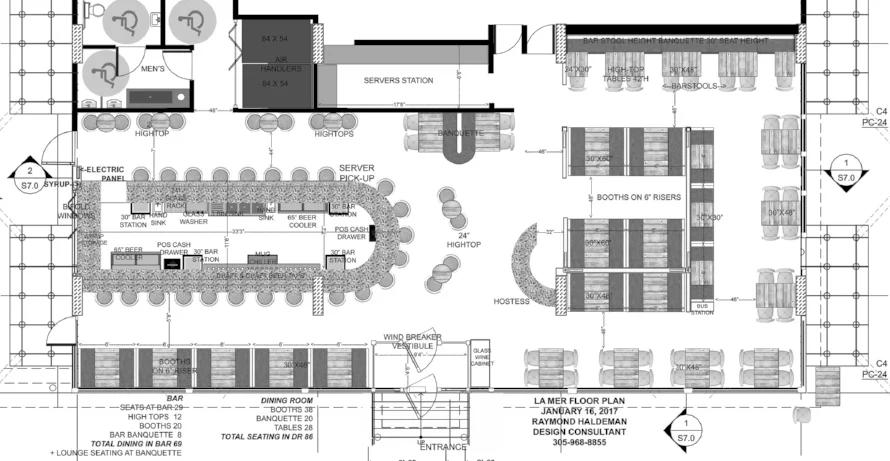

JAN 16 FP 8X11.jpg
